980S Barrier Strip Connector

Barrier Strip Connector

Screw connection, 1 solder pin per pole



Approvals



Request STP

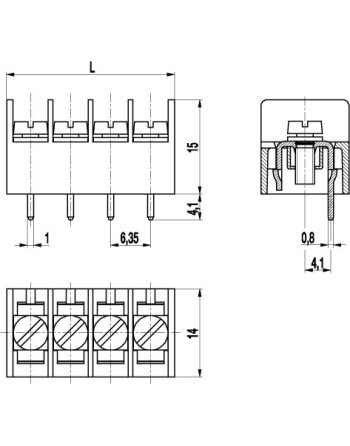

The PCB screw connector 980-S in 6.35 mm pitch is available with 2 to 32 poles. In spite of its small dimensions, it features large clearance and creepage distances. This version is equipped with one solder pin per pole. The conductor terminal is of head contact design, whereby the screws and square washers are movably connected. For easier connection, the non-rotably mounted square washers are automatically lifted when the screw is loosened.

Options

Marking: consecutive numbering, lettering or special printing available. Please provide sketch.

Insulating covers: enquire for details.

Data sheet

Mouldings
PA, grey, V-0
Current Rating
13.5A
Voltage Rating
320
Inserts
brass, tinned
Temp. limits
max short term: 140º C continuous: RTI 105º C
Conductor size
2 x 0.75mm2
Wire stripping length
6 mm
Screws
M3; zinc plated steel, blue passivated
Pin spacing
1/4” (6.35mm)
Tracking distance
CTI Over 600
Pressure plates
Tin plated brass
Recommended hole dia. in p.c. board:
1.6mm

Specific References

Download

980S data sheet
