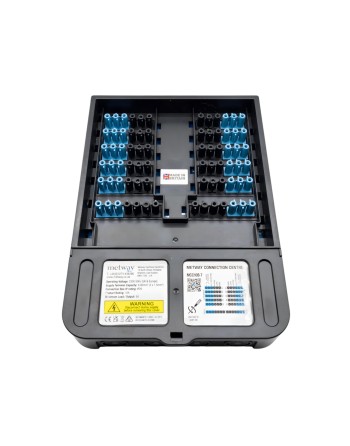

The new MCC Connection Centre lighting control module from Metway offers a wealth of new features to benefit the installer and specifier alike. It is the simple, flexible and cost effective solution for your lighting installation. The MCC connection centre unit comes in a 10 and 8 output configuration with dedicated PIR inputs.

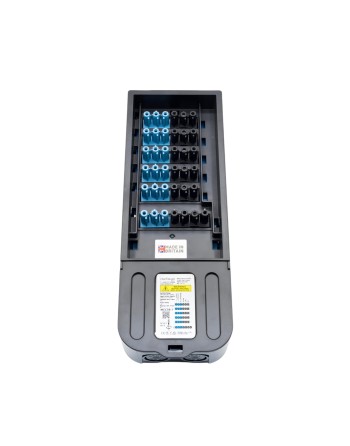

The Metway MDCC12 connection centre provides a simple way to integrate presence detectors and DALI compatible luminaires using industry standard 6 pole black blue connectors.

Up to 2 detectors can be connected and up to 12 luminaires dependent on the control philosophy required, manual override switches can also be incorporated.

Up to 4 MDCC12 can be networked together via the DALI output.

The Metway MA-DS10LCM10-S5 use DALI protocol to control up to 10 channels from one controller and incorporates five relays per channel to switch non-DALI fittings.

The MA-DALILCM10-S5 enclosure has been designed for ease of installation and set up with 'Z' bolt fixing rails provided on the rear and all connections to the until can be pre-wired.

Lighting can be programmed into groups, with multiple group capability.

A removeable memory module facilitates fast configuration of a replacement LCM should that be needed. In other words, should an LCM need to be replaced for any reason, no reprogramming is necessary, simply remove the memory module and reinsert it into the new controller.

The Metway DALI Broadcast LCM MA-DD1LCM10/M is used to control up to 10 channels.

Each channel can be programmed for:

- Relay only

- DALI only

- DALI + relay

- Relay or DSI

- 0-10V

- 1-10V

The DALI Broadcast enclosure has been designed for ease of installation and set up with 'Z' bolt fixing rails provided on the rear and all connections to the unit can be pre-wired.

A removeable memory module facilities fast configuration of a replacement LCM should that be needed. In other words, should an LCM need to be replaced for any reason, no reprogramming is necessary, simply remove the memory module and reinsert it into the new controller.
