324STFS/324STFB 25A plugs & sockets

Series 324STFS/324STFB 25A plugs & sockets



Approvals



Request STP

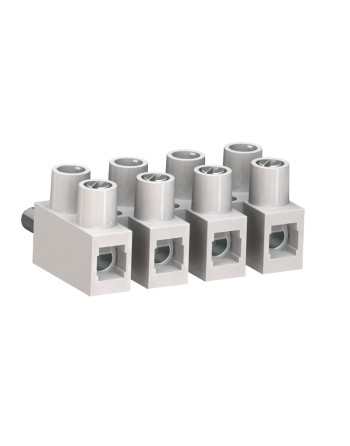

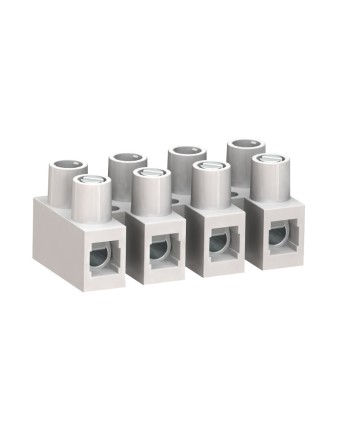

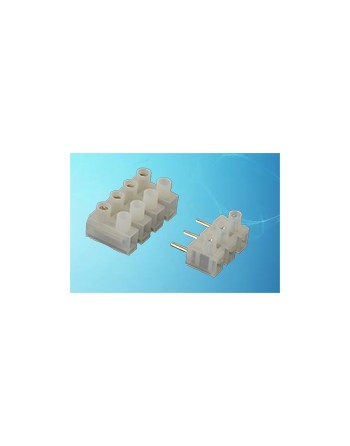

The plug-in terminal strip 324-STFS is available in 11,5 mm pitch with 2 to 12 poles. It has one screw connection per pole and one vertical pin for the connection to the socket of the female counterpart. This plug-in terminal strip was designed with a solid pin in order to provide reliable permanent contact to the socket of 324-STFB. The wire protector of the “DS”-version reliably prevents damage to multi-wire flexible conductors by the turning screw. These terminals strips can be screw-mounted on a substrate.

324STFS12

324STFB12

324STFSDS12

324STFBDS12

Data sheet

Material
polyamide 6 V2
Voltage
250v
Current Rating
25A
Core Cross-Section min
0.5mm
Core Cross-Section max
6mm
Approbation UL
yes
Approbation CSA
yes
Pitch
11.5mm
Number of Poles
2-12 pole

Specific References

Download

324stfs stfb

Download (350.26KB)
