103 Porcelain Connectors
Series 103 Porcelain Connectors
Approvals
Request STP/BIM File

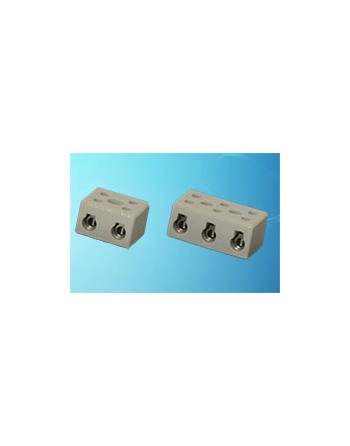

Series 103 porcelain connectors are suitable for all applications where thermoplastic materials would not have sufficient heat resistance capabilities. The connectors shown are glazed to prevent moisture absorption (base is unglazed) and are available in 32 amp rating only. None of the connectors on this page carry marking.
Available in 2 or 3 pole
Part codes:
1034 (2 pole)
1036 (3 pole)
Data sheet
- Material
- porecelain
- Current Rating
- 32A
- Voltage Rating
- 450v
- Core Cross-Section min
- 0.5mm
- Core Cross-Section max
- 6mm
- max. Ambient Temperature Operation
- 350°C
- Wire stripping length
- 7-7.5mm
- Number of Poles
- 2 & 3 pole
