210-A-SMD PCB Connector for SMD Screw connection

210-A-SMD

PCB Connector for SMD

Screw connection, with mounting peg



Approvals



Request STP

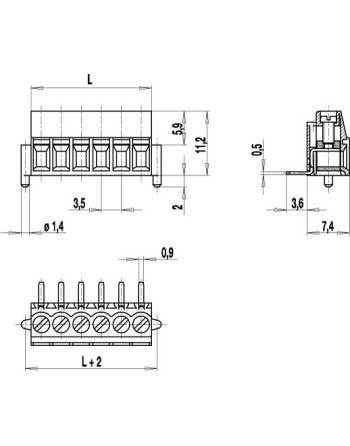

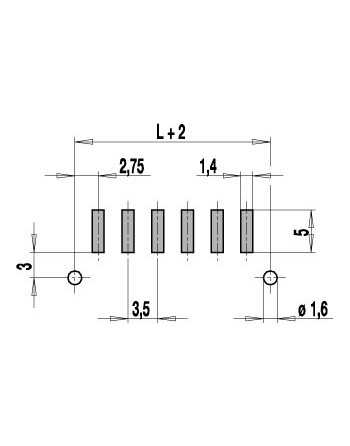

The PCB connectors for surface mounting comprise several types for reflow processes. The SMD connector 210-A-SMD with a pitch of 3,5 mm is designed with screw connections in elevator clamping style and available in 2 to 12 pole design. The terminal clamp and the soldering tag are manufactured as a single unit and permanently engaged in the housing. The solder pins are exactly aligned parallel to the printed circuit board in order to create a coplanar connection after the reflow soldering process. The moulding is made of heat resistant thermoplastic material and equipped with plastic pegs on both sides to prevent twisting. The use of a strain relief is recommended. This article is only available in tubes or in Tape-on-Reel.

210ASMD**

Data sheet

Mouldings
PA HT,Black V0
Current Rating
12.5A
Core Cross-Section min
0.14mm
Core Cross-Section max
1.5mm
Pitch
3.5mm
Number of Poles
2-12
Soldering Process
Reflow solder
Temperature range
-40°C-120°C

Specific References

Download

210 smd datasheet

Download (425.07KB)
