974-D-SMD-DS PCB Connector for SMD Screw connection, 45° wire entry

974-D-SMD-DS

PCB Connector for SMD

Screw connection, 45° wire entry



Approvals



Request STP

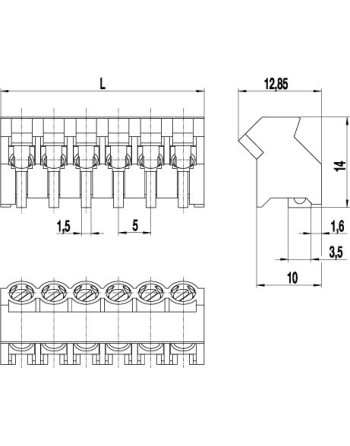

By creating the 974-D-SMD-DS, WECO offers a PCB terminal for the reflow soldering process with a pitch of 5 mm in true surface mount technology. The wire entry has a connection angle of 45° to the PCB. This offers the advantage that terminal rows can be located space savingly one behind the other. The housing material consists of high temperature resistant plastic and is specially designed in order to assure a good hot-air circulation during the reflow soldering process in the convection oven. The wire entry side of the terminal has to be placed in flowing direction. The screws are turned in to the optimal length of engagement by the factory. It is not to be excluded that the position of the screws may change by transport. Therefore it can be necessary that the screw has to be turned back for using the maximum permissible wire cross-section.

974DSMDDS**

974DSMDDS**TR

Data sheet

Mouldings
PA HT,Black V0
Current Rating
24A
Core Cross-Section max
2.5mm

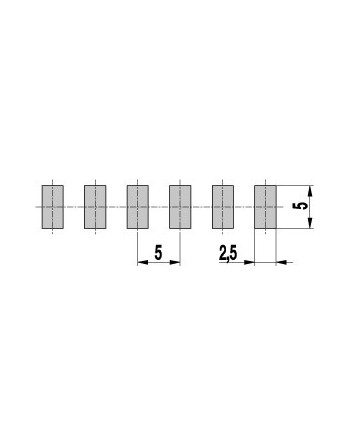

Pitch
5mm
Number of Poles
2-6
Soldering Process
Reflow solder
Temperature range
-40°C-120°C

Specific References

Download

974 smd datasheet

Download (361.88KB)
