938T (DS) 02/03
PCB Connector
Screw connection, enlarged clamping area, dovetail version
Wire protectors (DS) available
Approvals
Request STP/BIM File

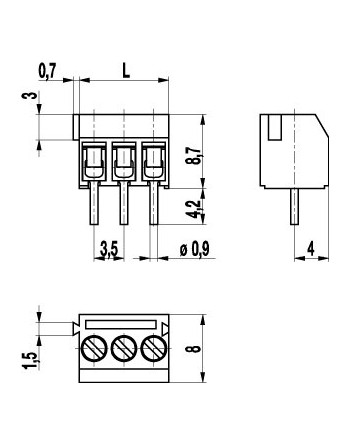

The PCB connector 938 with a pitch of 3,5 mm is available in 2- and 3-pole design. Compared to the PCB connector 930, it has a larger conductor space. It can be mounted side-by-side without pole loss, and is equipped with captive screws. Lateral latching elements on the housing allow to latch the PCB connector to longer terminal strips without pole loss. The wire protector of the “DS”-version reliably prevents damage to multi-wire flexible conductors by the turning screw and allows the connection of up to 1.5 mm² flexible conductors.
938TDS02
938TDS03
Options
Marking: consecutive numbering, lettering or special printing available. Upon request
Data sheet
- Mouldings
- PA, grey, V-0
- Current Rating
- 10A
- Voltage Rating
- 300V
- Inserts
- brass, tinned
- Screw tightening torque
- 0.2 Nm
- Conductor size
- 1.5mm2
- Wire stripping length
- 5 mm ± 0.5 mm
- Screws
- M2; zinc plated steel, blue passivated
- Pin spacing
- 3.5mm
- Tracking distance
- CTI Over 600
- Recommended hole dia. in p.c. board:
- 1.2mm
- Temperature range
- -40°C up to 100°C
- Wire protectors
- DS - stainless steel
