931-SLR-SMD-1.1 Pin Strip for SMD

931-SLR-SMD-1.1

Pin Strip for SMD

Plug-in area ø 1.1 mm



Approvals



Request STP

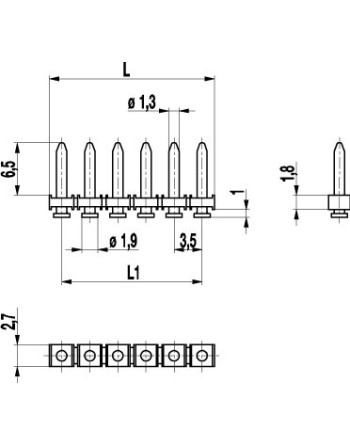

The pin strip 931-SLR-SMD-1,1 for the application in a reflow soldering process in genuine SMD technology and with a pitch of 3,5 mm is available in 2 to 16 pole design. It comes with a constant pin diameter of 1,1 mm at the plug-in area. Contrary to the pin strips 931-SLR-THR and 931-SLR-THR-1,1, for which holes in the PCB are necessary, the SMD types of WECO base on true surface assembly. Soldering expanses at the end of the pins guarantee optimal retention force on the printed circuit board. Just like all THR versions of WECO, also the housings of the SMD series are made out of high temperature resistant plastic material and exhibit a very high CTI value. For the automatic assembling all pin strips of this series are packed in Tape-on-Reel and equipped with high temperature resistant Pick Caps, which can easily be removed after the soldering process.

931SLRSMD1.1**

Data sheet

Mouldings
PA HT,Black V0
Current Rating
6A
Pitch
3.5mm
Number of Poles
2-16
Soldering Process
Reflow solder
Temperature range
-40°C-120°C

Specific References

Download

931 smd datasheet

Download (410.03KB)
