971-SLT-SMD Pin Strip for SMD Low profile

971-SLT-SMD

Pin Strip for SMD

Low profile



Approvals



Request STP/BIM File

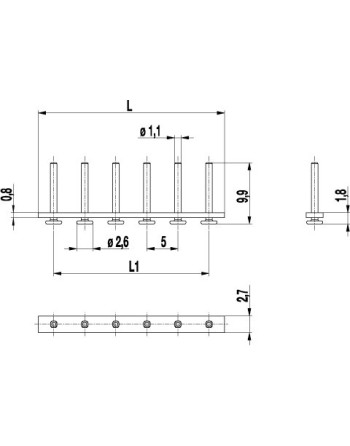

971-SLT-SMD is a pin strip with a pitch of 5 mm for the application in a reflow soldering process with low profile for space critical applications. Contrary to the well-known pin strips of 971-SLR and 971-SLR-THR, for which holes in the PCB are necessary, the SMD types of WECO base on true surface assembly. Soldering expanses at the end of the pins guarantee optimal retention force on the printed circuit board. We recommend this pin strip with pin diameter of 1,1 mm in the mating area for higher numbers of poles, in order to minimize the plug-in and withdrawal forces here. Just like all THR versions of WECO, also the housings of the SMD series are made out of high temperature resistant plastic material. For the automatic assembling all pin strips of this series are packed in Tape-on-Reel and equipped with high temperature resistant Pick Caps, which can easily be removed after the soldering process.

971SLTSMD**

971SLTSMD**TR

Data sheet

Mouldings
PA HT,Black V0
Current Rating
10A
Pitch
5mm
Number of Poles
2-12
Soldering Process
Reflow solder
Temperature range
-40°C-120°C
