120-M-227-SMD Header Vertical plug-in, with anchors

120-M-227-SMD

Header

Vertical plug-in, with anchors



Approvals



Request STP/BIM File

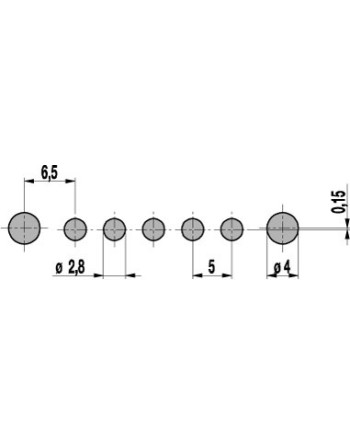

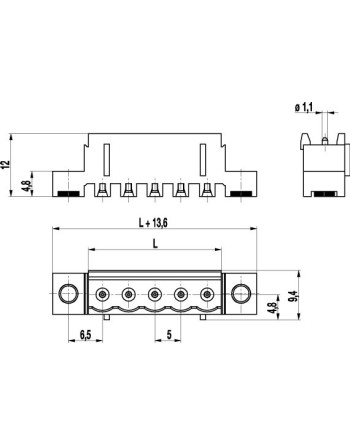

120-M-227-SMD is a pin strip with a pitch of 5 mm for surface mount technology and suitable for all plugs of the plug connector system of series of 120 and available in lengths from 2 to 22 poles. The solder retention devices (SMT anchors) on either side of the terminal housing provide an exceptionally high retention force for the terminal block to the PCB. The most significant benefit of this design is the protection it provides to the solder joints against stresses encountered in field-installations. The product eliminates completely CTE mismatch (Coefficient of thermal expansion) and provide total coplanarity by the position adapting pins. For the automatic assembling process, all pin strip versions are packed Tape on Reel and are equipped with high temperature resistant pick caps, which can comfortably be removed after the soldering process. Plug-In direction vertical to PCB and wire entrance parallel to PCB when plugged with 120-D-111, 120-D-121 Plug-In direction and wire entrance vertical to PCB when plugged with 120-A-111.

120M227SMD**

120M227SMD**TR

Data sheet

Mouldings
PA HT,Black V0
Current Rating
12A
Pitch
5mm
Number of Poles
2-22
Soldering Process
Reflow solder
Temperature range
-40°C-120°C
