110-A-111 Plug Connector Screw connection
110-A-111
Plug Connector
Screw connection
Approvals
Request STP/BIM File

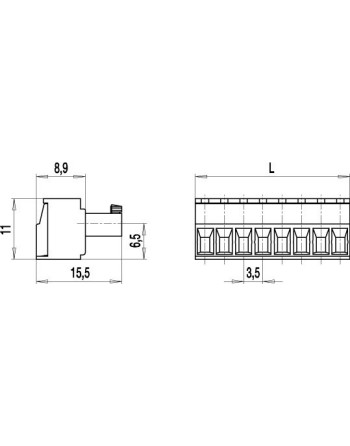

The plug connector 110-A-111 with a pitch of 3,5 mm is available in 2- to 24-pole design. For its small dimensions it offers remarkable connection data (1.5 mm² / 160 V-III-3 / 8 A). The high-quality elevator system guarantees reliable connection of all conductor types. As standard, the plug connector has coding nips which can be cut off, if necessary.
110A111**
Data sheet
- Mouldings
- PA Grey V0
- Current Rating
- 8A
- Pitch
- 3.5mm
- Number of Poles
- 2-24
