974 (DS) PCB Connector
Screw connection, 45° wire entry
Approvals
Request STP/BIM File

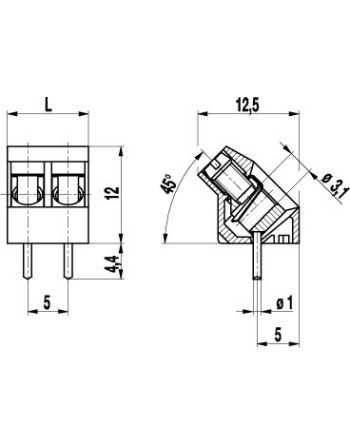

The PCB connector 974, inclined version with a pitch of 5 mm is available with 2 to 26 poles. The wire entrance is in a 45° angle diagonal to the PC board. Therefore, this PCB connector is ideal for the assembly in the center of PCBs. The design of this PCB connector allows space-saving arrangement of consecutive rows of terminals. Wire protection in DS-design reliably prevents damage to stranded wires by the screw.
Marking: consecutive numbering, lettering or special printing available. Please provide sketch.
974**DS
Data sheet
- Mouldings
- PA, grey, V-0
- Current Rating
- 20A
- Voltage Rating
- 300V
- Inserts
- brass, tinned
- Screw tightening torque
- 0.5 Nm
- Conductor size
- 2.5mm2
- Wire stripping length
- 6.5 mm ± 0.5 mm
- Screws
- M3; zinc plated steel, clear passivated
- Pin spacing
- 5mm
- Number of Poles
- 2-26
- Tracking distance
- 2 to 8 pole lengths: CTI Over 600 9 to 26 pole lengths: CTI Over 175
- Recommended hole dia. in p.c. board:
- 1.3 mm
- Temperature range
- -40°C up to 100°C
- Wire protectors
- (DS) Tin plated tin bronze
