977 (DS) PCB Connector
Screw connection, with test holes
Approvals
Request STP/BIM File

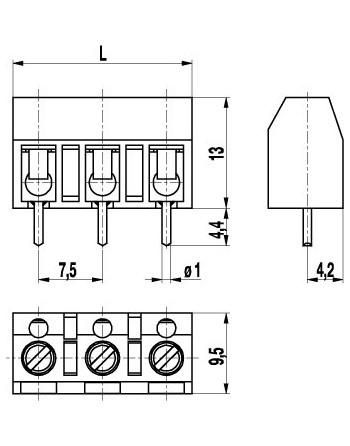

The PCB connector 977 with a pitch of 7,5 mm is available in 2- to 8-pole design and can be mounted side-by-side in the nominal pitch. Due to their large clearance and creepage distances, these PCB connectors are particularly suitable for higher voltages. Wire protection in DS-design reliably prevents damage to stranded wires by the screw. The screws are secured against self-loosening. This PCB connector has test holes for ø 2 mm test plugs.
Options
Marking: consecutive numbering, lettering or special printing available. Upon request
977**DS
Data sheet
- Mouldings
- PA, grey, V-0
- Current Rating
- 24A
- Voltage Rating
- 300V
- Inserts
- brass, tinned
- Screw tightening torque
- 0.5 Nm
- Conductor size
- 2.5mm2
- Wire stripping length
- 7 mm ± 0.5 mm
- Screws
- M3; zinc plated steel, blue passivated
- Pin spacing
- 7.5mm
- Number of Poles
- 2-8
- Tracking distance
- CTI Over 600
- Recommended hole dia. in p.c. board:
- 1.3 mm
- Temperature range
- -40°C up to 100°C
- Wire protectors
- (DS) Tin plated tin bronze
