120-M-111 /-211 Header Plug-in direction parallel to PCB
120-M-111 /-211
Header
Plug-in direction parallel to PCB
Approvals
Request STP/BIM File

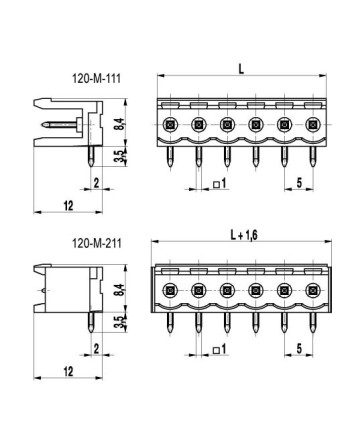

The pin strips 120-M-111 and 120-M-211 with a pitch of 5 mm are available in 2- to 12-pole design. The ..-M-111 version is a pin strip without side walls and can be mounted side-by-side without pole loss. The ..-M-211 version is a pin strip with closed side walls. For both designs, the plug direction for mating plug connectors is parallel to the PCB. For each pole, the pin strips have one trapezoidal coding slot in which the coding elements 120-K can be inserted.
120M111**
120M211**
Data sheet
- Mouldings
- PA Grey V0
- Current Rating
- 12A
- Pitch
- 5mm
- Number of Poles
- 2-12
- Fitting Hole Size
- ø 1.4 mm
- orientation
- horizontal
