980 02 Screwless T'block

980 Series 2 Pole Screwless T'block



Approvals



Request STP/BIM File

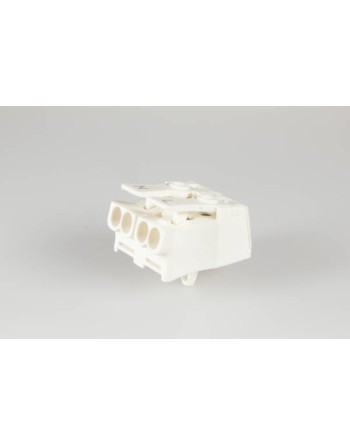

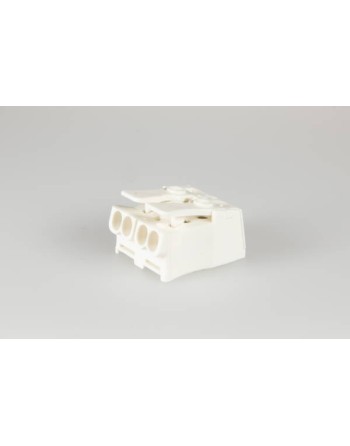

Series 980 16A Terminal Blocks are screwless connectors with 2 ports per pole on each side with the option of screw fixing or catch pin fixing (type RZ).

There is an additional connection for 1 x 0.5mm2 conductor on one side of each pole for internal wiring (eg. interference capacitor).

The range has 4 earthing options:
– without earthing tab  (leave blank)
– earthing tab screw (type SK)
– earth claw (type SU)
– earthing contact bow (type STW)

The range can also be marked or unmarked.

- For makred (type B at the end of the part number)

9800102

9800102B

Data sheet

Mouldings
nylon 6.6, white, UL94 V2
Current Rating
to EN 60 598: 16A to EN 60 998: 24A
Voltage Rating
450V
Inserts
Electro copper, plated
Temp. limits
max short term: 160º C continuous: 100º C
Conductor size
External:2 x 0.5mm2 to 2.5mm2 Internal: 1 x 0.5mm2 to 1.5mm2 1 x 0.5mm2 to 2.5mm2 1 x 0.5mm2 to 0.75mm2 (capacitor)
Wire stripping length
conductors: 0.5mm2 to 1.0mm2: 8mm conductors: 1.5mm2 to 2.5mm2: 9mm capacitors: 0.5mm2 to 0.75mm2: 9mm

Specific References

Download

980 2 Pole data sheet

Download (184.8KB)
