164 5 pole flat

Plug & Socket, 5 Pole

coding: 1 (mains)cable diameter min.: 6.5 mmcable diameter max.: 11.8 mm

voltage rating: 240/400 Vcurrent rating: 16 Across-section rating: 2.5 mm²connection type: screw



Approvals



Request STP/BIM File

Metway Series 164STF/BUF 5 pole flat plugs and sockets, complete with strain relief are only half the size of the “big brother” Series 166 but offers the same advantages, for flexible installations.

Thanks to the small dimensions that “plug & play” solution is now perfectly suited to shop fitting and booth construction.

Saving laborious tasks, such as measuring, dismantling, stripping and terminating, it considerably reduces the time pressure which these projects are often under.

Project completion can be achieved easily more quickly and economically. In addition, its module system allows re-use of components in case of reconstruction work in a shop or when erecting display stands.

Series 164 are unique and ideally suited for the installation in luminaires and appliances with limited space.

Series 164 5 pole flat plugs and sockets are also available in black and pastel blue.

  • 164STFW05 – 5 pole male plug white

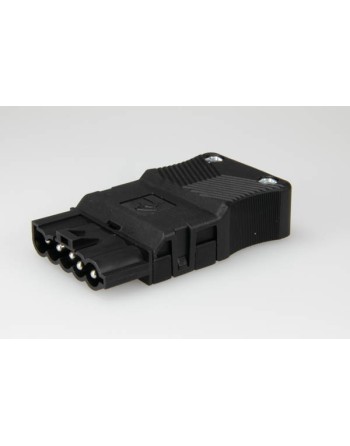

  • 164STF05 — 5 pole male plug black

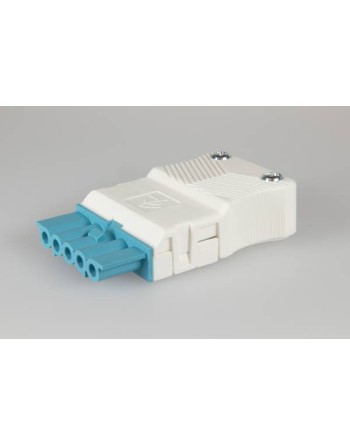

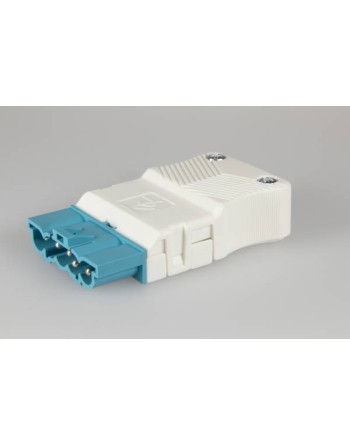

  • 164STFW05PB – 5 pole male plug white & pastel blue

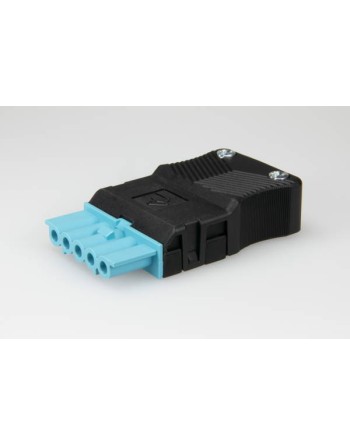

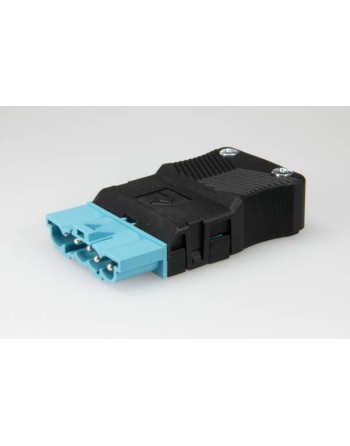

  • 164STF05PB — 5 pole male plug black & pastel blue

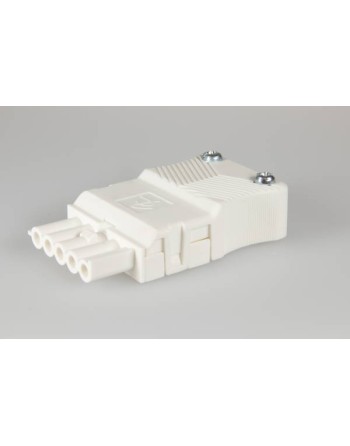

  • 164BUFW05 — 5 pole female socket white

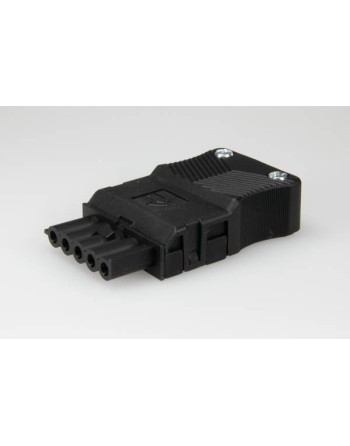

  • 164BUF05 — 5 pole female socket black
  • 164BUFW05PB — 5 pole female socket white & pastel blue
  • 164BUF05PB — 5 pole female socket black & pastel blue
  • 164 5 pole
147465

Data sheet

Mouldings
PA black, white, blue
Current Rating
16A
Protection Class
IP20 IP40 when connected
Voltage Rating
240/400V
Inserts
brass, tinned
Temp. limits
max short term: 160o C continuous: 100o C
Conductor size
0.5mm2 – 2.5mm2
Wire stripping length
7mm
Screws
M3, steel, zinc plated, chromed

Specific References

Download

164 f 5p datasheet

Download (409.12KB)

164BUF05 STP File

Download (875.82KB)

164BUFW05 STP File

Download (875.82KB)

164STFW05 STP File

Download (793.42KB)

164BUFW05PB STP File

Download (886.92KB)

164STFW05PB STP File

Download (688.76KB)

164 Range DoC

Download (144.56KB)
