326 (HDS) 57A Terminal Block
Screw connection
Approvals
Request STP/BIM File

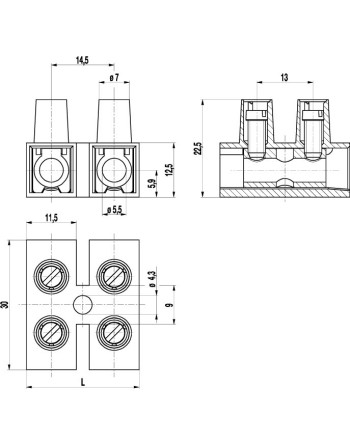

The socket terminal strip 326 is available in 14,5 mm pitch with 1- to 12-pole design and can be easily stripped to the desired number of poles. This version has a large terminal space and a creepage distance of more than 7 mm measured from terminal body to mounting surface. That is why this terminal strip is suitable for voltages up to 750 V. One fixing hole is located between every two poles. The flexible polyamide moulding can even be mounted on curved surfaces. The wire protector of the “HDS”-version reliably prevents damage to multi-wire flexible conductors by the turning screw.
326WE12
326HDS12
Data sheet
- Mouldings
- PA, white, V-0
- Current Rating
- 57A
- Voltage Rating
- 500V
- Inserts
- Nickel plated brass
- Screw tightening torque
- 1.2 Nm
- Conductor size
- 10 mm²
- Wire stripping length
- 9 mm ± 1 mm
- Screws
- M4; zinc plated steel, blue passivated
- Pitch
- 14.50 mm
- Number of Poles
- 1-12
- Temperature range
- -40°C up to 100°C
- Wire protectors
- (HDS) Stainless steel strip
