324 (HDS) 32A Terminal Block
Screw connection
Approvals
Request STP/BIM File

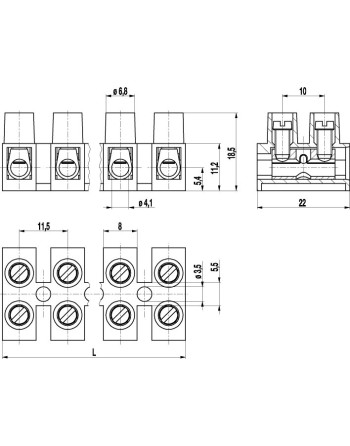

The socket terminal strip 324 is available in 11,5 mm pitch with 1- to 12-pole design and can be easily stripped to the desired number of poles. One fixing hole is located between every two poles. The flexible polyamide moulding can even be mounted on curved surfaces. The wire protector of the “HDS”-version reliably prevents damage to multi-wire flexible conductors by the turning screw.
32412
324HDS12
Data sheet
- Mouldings
- PA, natural, V-2 (PA, white, V-0)Details in brackets apply for "no flame" products
- Current Rating
- 32A
- Voltage Rating
- 400V
- Inserts
- Nickel plated brass
- Screw tightening torque
- 0.8 Nm
- Conductor size
- 4 mm²
- Wire stripping length
- 7 mm ± 0.5 mm
- Screws
- M3,5; zinc plated steel, blue passivated
- Pitch
- 11.50 mm
- Number of Poles
- 1-12
- Temperature range
- -40°C up to 100°C
- Wire protectors
- (HDS) Stainless steel strip
