307PC tab type terminal blocks

Tab type terminal blocks that are particularly suitable for the mains connection of electrical equipment.



Approvals



Request STP

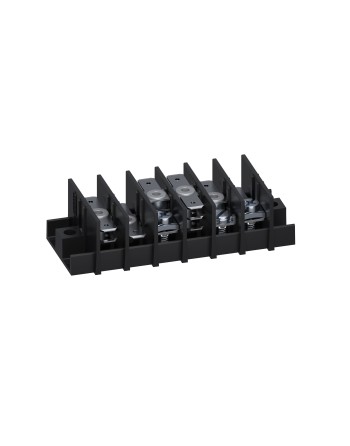

Series 307PC tab type terminal blocks are barrier connectors suitable for the mains connection of electrical equipment. The polycarbonate mouldings allow relatively high working temperatures (up to 135°c) and are suitable for use with conductors with crimped terminals fitted.

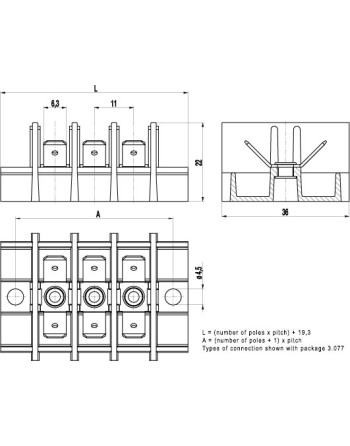

307 blocks have a star-shape tab arrangement.

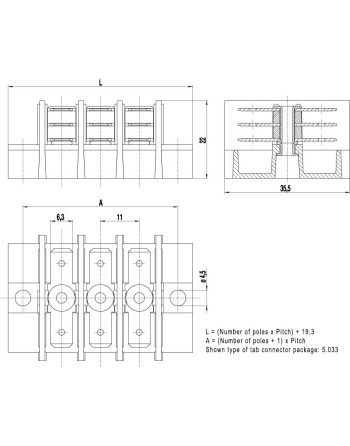

3070 blocks have a parallel horizontal tab arrangement.

Data sheet

Current Rating
Please see Data Sheet
Voltage Rating
250V
Insulating Material
PC, Black
Contact Material
Nickel plated brass
Core Cross-Section min
0.5mm²
Core Cross-Section max
1.5mm²
max. Ambient Temperature Operation
125°
Wire stripping length
8-8.5mm
Flammability Rating
V-0

Specific References

Download

307/0 PC

307/0 PC Data Sheet

Download (292.06KB)
