TH.395 Techno TEETUBE

Techno TEETUBE ® TH395

IP66/IP68 In-line Connector



Approvals



Request STP/BIM File

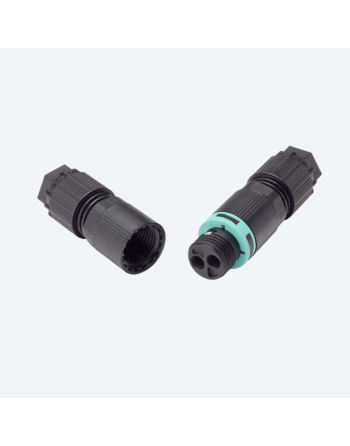

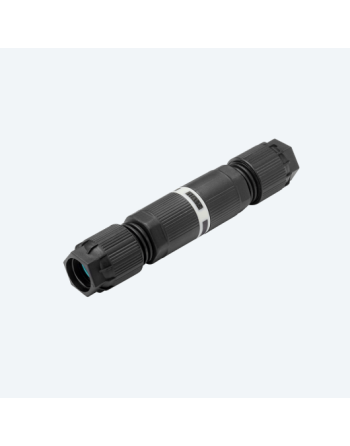

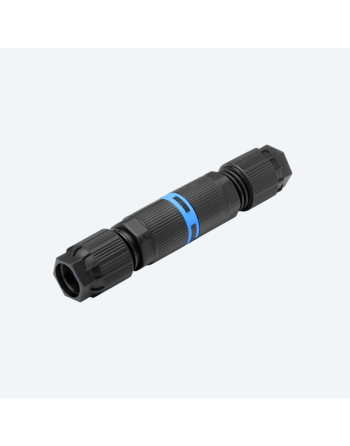

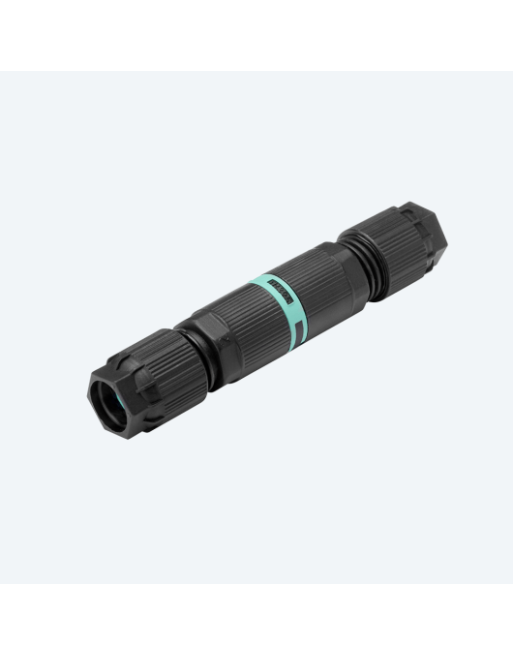

Techno  TEETUBE ® TH395 In-line Connector is the most compact TEETUBE in the range. It can be used in various situations, for example in the connection of power and heating cables, as a protection of electronic circuits, in data and optical fiber connections, in motors and pumps.

The special anti-moisture barrier prevents the damp inside the cable from entering the connection and proceeding towards the device installed.

Techno  TEETUBE ® TH395 In-line Connector is ideal for LED applications with the presence of water and debris (e.g. flooded junction boxes).

Ø14 x 76mm

IK07

This part is available with 3 different markings:

L/N (Green)

+/- (Blue)

1/2 (White)

Data sheet

IP Rating
68
Number of Poles
2
Cable section
0.25 – 1.5 mm2
Cable diameter min-max
5.4 – 7.9mm

Specific References

Download

TH.395 Data Sheet

TH.395 Data Sheet

Download (163.02KB)
