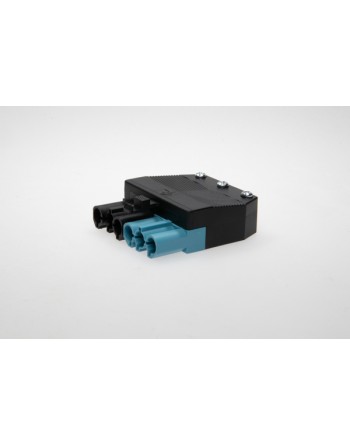

166G Tall 6 Pole
Series 166GST/GBU 6 pole plug and socket connectors comply with EN 60 320 and are primarily intended for use with lighting controllers.
Approvals
Request STP/BIM File
Series 166GST/GBU 6 pole 16A plug and socket connectors comply with EN 60 320 and are primarily intended for use with lighting controllers.
They can be connected and disconnected underload in accordance with VDE 0627.

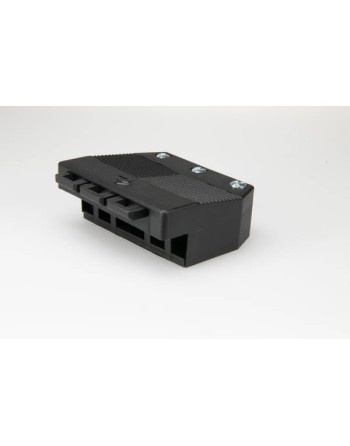

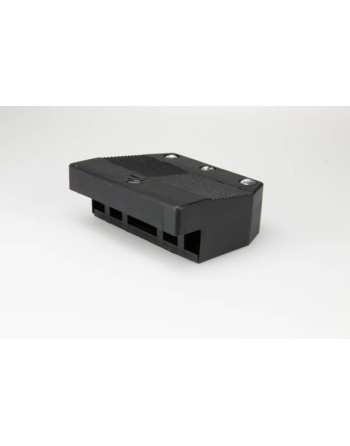

They come complete with covers and base plates in an unassembled condition.

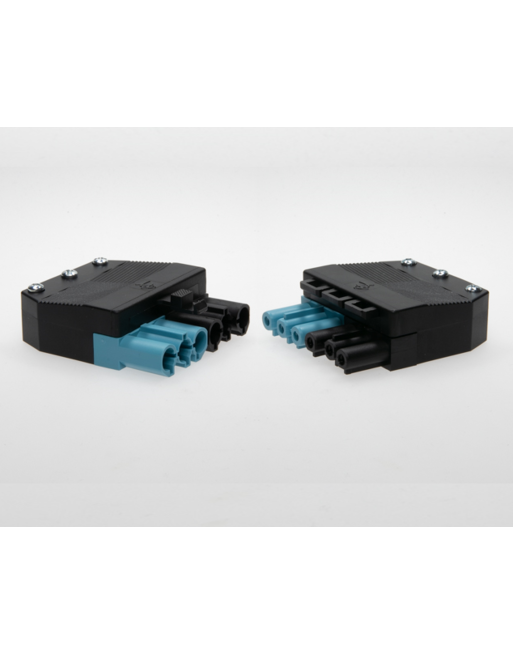

Use in pairs or with lighting control modules.

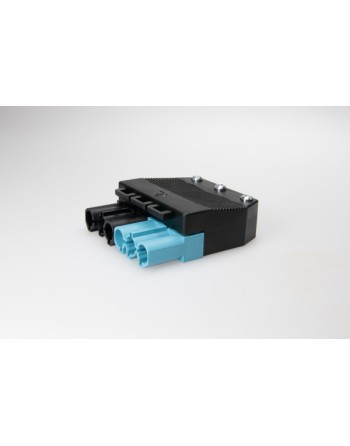

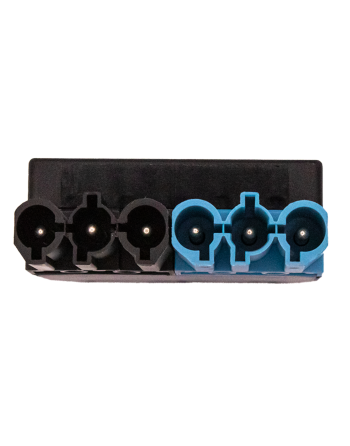

166GST06ASS-007 – 6 pole plug black/blue non latching.
166GST06ASS-009 – 6 pole plug black/blue hook cover.

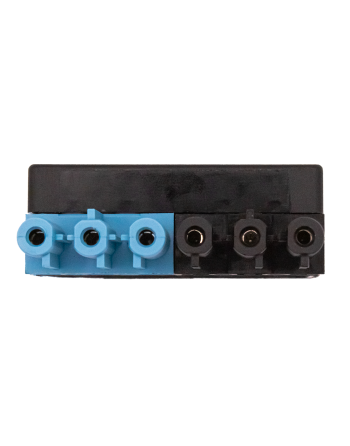

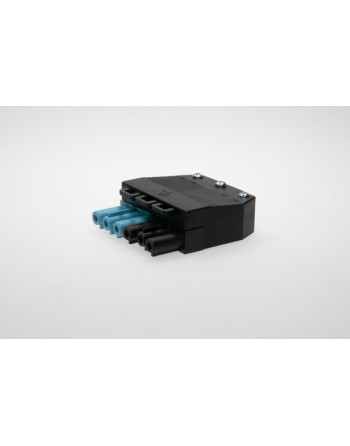

166GBU06ASS-004 – 6 pole socket black/blue non latching.
166GBU06ASS-009 – 6 pole socket black/blue with eye cover.
Data sheet
- Mouldings
- nylon 6.6 (PA6/6), black/blue or black/grey
- Current Rating
- to EN 61 984: 16A / 250v at 70oC to EN 60 320: 16A / 250v at 70oC
- Protection Class
- IP20 IP40 when connected
- Voltage Rating
- See approvals
- Inserts
- brass, tinned
- Contact screws
- M3 steel, zinc plated, chromed
- Moulding Screws
- C2.9 steel, zinc plated, chromed
- Screw tightening torque
- contacts: max: 0.3 Nm mouldings: max 0.4 Nm
- Temp. limits
- max short term: 160o C continuous: 100o C
- Conductor size
- 1.5mm2 - 2.5mm2
- Wire stripping length
- 7mm
