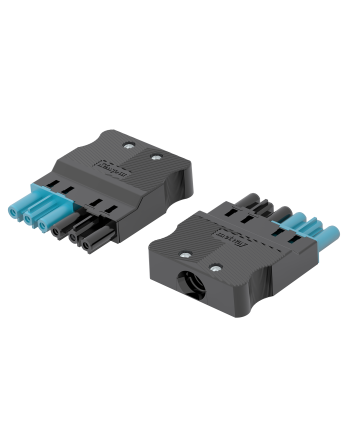

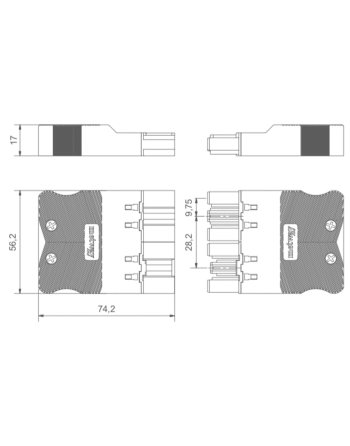

166G Flat 6 Pole

Series 166G flat 6 pole plug and socket connectors comply with EN 60 320 and are primarily intended for use with lighting equipment including digital dimming or three phase supply, where limited access requires the use of low profile mouldings.

Approvals

Request STP/BIM File

They have an extended earth plug fitted as standard and can be connected and disconnected under load in accordance with VDE 0627.

They are supplied pre-leaded:

Male to free end Female to free end Male to female

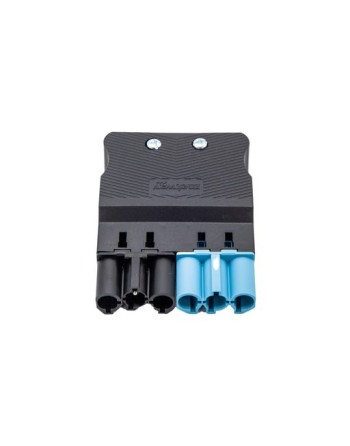

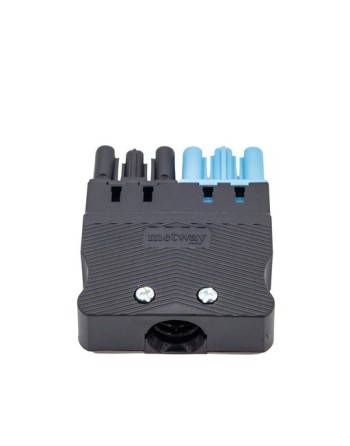

166GSTF06 — 6 pole plug black/blue

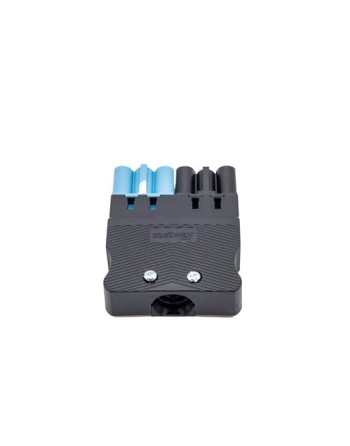

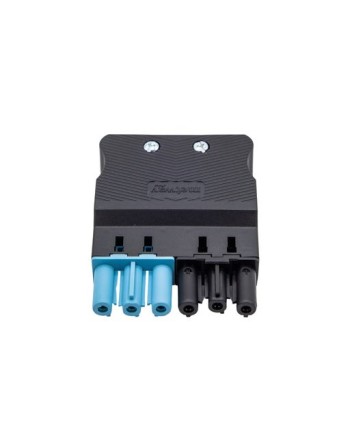

166GBUF06 — 6 pole socket black/blue

Reference

Data sheet

Mouldings: Nylon 6.6 (PA6/6), black, white, grey and coral red
Current Rating: to EN 60 320: 16A / 250v at 70ºC to EN 61535: 20A at T 70ºC to EN 61984: 16A at T 70ºC
Protection Class: IP20 IP40 when connected
Voltage Rating: See approvals
Inserts: brass, tinned
Temp. limits: max short term: 160o C continuous: 100o C
Conductor size: 0.5mm2 – 4.0mm2
Wire stripping length: 7mm
Screws: M3, steel, zinc plated, chromed

Specific References

Download

166G Flat 6 Pole Datasheet

Download (1.91MB)
