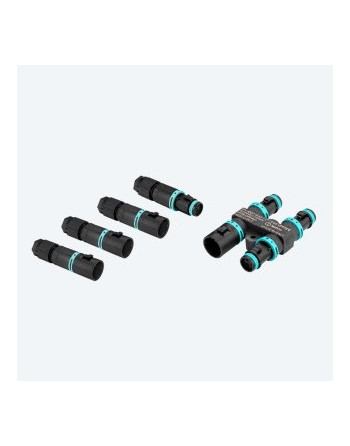

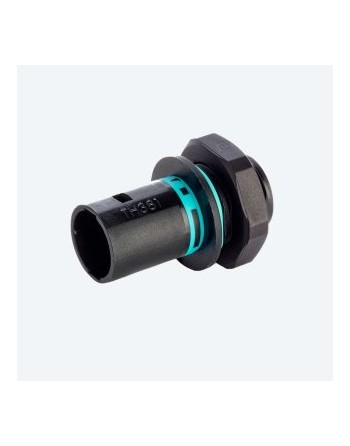

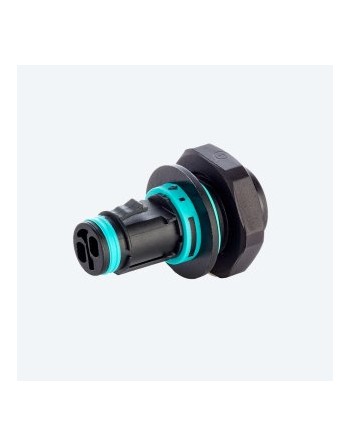

Techno TEEPLUG ® TH381 Micro Plug and Socket Connector is the smallest 2 pole IP68 connector by Metway and allows the installation of electrical equipment to a high protection class, permanently watertight in depths up to 30m (30m/1h). Quick, easy and intuitive installation is made without the use of cast rasin, gel or heat shrink tubing.

• • Only 14mm diameter
  • Overall length when plugged-in only 90mm
  • Current rating 10A/250V
  • Proven, flexible screw connection technology for wiring conductors from 0.25 to 1.0 mm²
  • Cable diameter size 5.8 to 8.0 mm
  • Safe and captive gaskets by the use of two-component injection moulding technology
  • Quick, easy and intuitive installation
  • Two locking variants (manual or safe-lock)
  • Self-release protection for strain relief and housing screw connection
  • Connection to a housing with M11 or M16 with built-in water and dust resistant
