900W 5 tab type PCB connector, top & side entry

tab type PCB connector, top & side entry



Approvals



Request STP/BIM File

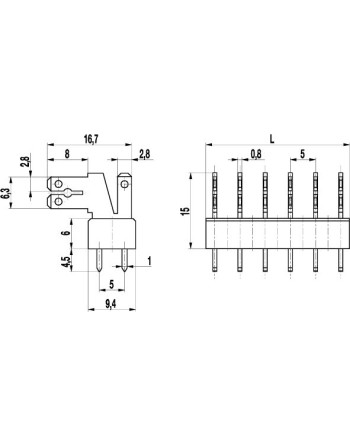

The tab connector 900-W-5 with double solder termination and a pitch of 5 mm is designed for 1x 2,8 mm and 1x 2,8 mm/1x 6,3 mm tab connector receptacles. Depending on the respective application, the tab connectors of series 900 allow to plug in bare, partially or fully insulated tab receptacles according to DIN 46247. A non-insulated 2,8 mm or a 6,3 mm (optionally also insulated) tab connector receptacle can be plugged in the angled plug-in area of the tab connector. To the vertical tab connector, a non-insulated 2,8 mm tab connector receptacle can be also be connected. Insulation receptacles ISO-25 and ISO-250 (see also ISO product data sheet) can be used to insulate 6,3 mm tab receptacles.

900W 5**

Data sheet

Mouldings
nylon 6.6,UL94 V0
Housings
red or grey
Continuous Working Temp
105°C
Short Time Temp
140°C
Current Rating
2.8*0.8mm tabs-6A / 6.3*0.8mm-15A
Voltage Rating
5mm spacing 250v / 7.5mm spacing 500v / 10mm spacing 600v
Conductor size
2.8*0.8mm-1.5mm2 / 6.3*0.8mm-2.5mm2

Specific References

Download

900 s w datasheet

Download (766.29KB)
