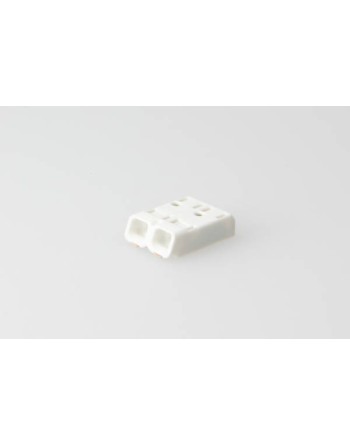

SMDFlat345 LED - SMD Connector

SMDFlat345 LED - SMD Connector



Approvals



Request STP

The new SMDFlat345 connectors for LED modules.

* 4.0mmpin spacing
* 3.45mm height, the lowest version in the market minimising formation of shades in application
* Funnel shaped wiring ports for easy  and automatic wire access of solid or flexible wires up to 0.75mm2
* 4.0mmpin spacing
* 3.45mm height, the lowest version in the market minimising formation of shades in application
* Funnel shaped wiring ports for easy  and automatic wire access of solid or flexible wires up to 0.75mm2
* 1 and 2 pole versions
* Tape and reel packaging for automatic process
* Secure release function due to a release tool

SMDFLAT34501

SMDFLAT34502

Data sheet

Material
PPA-GF
Mouldings
White
Current Rating
6A
Voltage Rating
600v
Approbation VDE
yes
Approbation UL
yes
Wire stripping length
8-9mm
Pitch
4mm

Specific References

Download

345 datasheet

Download (668.64KB)
