900S 5 tab type PCB connector top entry

tab type PCB connector top entry



Approvals



Request STP/BIM File

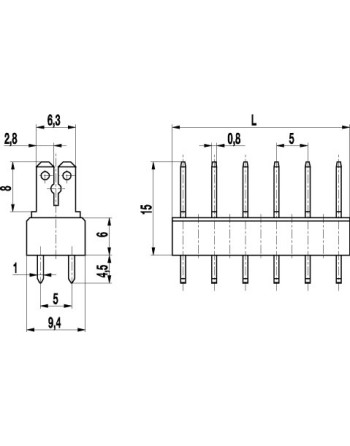

The tab connector 900-S-5 with double solder termination and a pitch of 5 mm is designed for 1x 2,8 mm or 1x 6,3 mm tab connector receptacles. Depending on the respective application, the tab connectors of series 900 allow to plug in bare, partially or fully insulated tab receptacles according to DIN 46247. Also non-insulated 2,8 mm or 6,3 mm tab receptacles can be plugged on these tab connectors. Insulation receptacles ISO-25 (see also ISO product data sheet) can be used to insulate 2,8 mm or 6,3 mm tab receptacles. Insulation sockets are available for 6,3 mm tab connectors with double-spring contacts

900S 5 **

Data sheet

Connector Rating
2.8*0.8mm tabs-6A / 6.3*0.8mm tabs-15A
Material
nylon 6.6, UL94 V0
Voltage
5mm spacing 250v / 7.5mm spacing 500v / 10mm spacing 600v
Mouldings
red or grey
Continuous Working Temp
105°C
Short Time Temp
140°C
Inserts
brass tinned
Conductor size
2.8*0.8mm-1.5mm2 / 6.3*0.8mm-2.5mm2

Specific References

Download

900 s w datasheet

Download (766.29KB)
