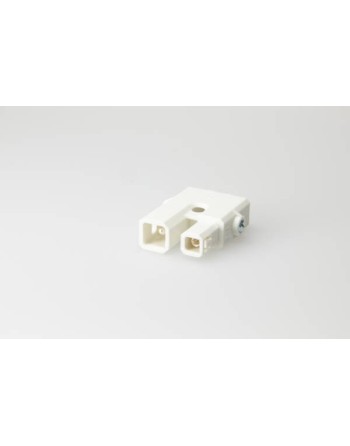

Series 162STS 2 pole “maxi” low voltage connectors



Approvals



Request STP

Series 162STS incorporate a plug and a socket integrated into one connector.

These can be inter-connected to each other by simply rotating 180°.

Due to their height of 8mm, they are particularly suitable for use in confined areas and are mechanically coded to prevent incorrect connection.

Available in colours black or white.

Series 162ALC cord sets comprise of a 162 connector wired to a free end cable, complete with ferrules for connecting to transformers etc.

Series 162VLC extension leads are fitted with a 162 connector on each end.

All items shown comply to low voltage regs. 73/23/EWG.

Part codes:

162STS02 (Black)

162STSW02 (White)

Data sheet

Material
polyamide 6.6 V2
Voltage
48v
Current Rating
25A
Operating Temperature
70°C
Core Cross-Section min
0.5mm
Core Cross-Section max
2.5mm
Wire stripping length
7

Specific References

Download

162 l v datasheet

Download (399.57KB)
