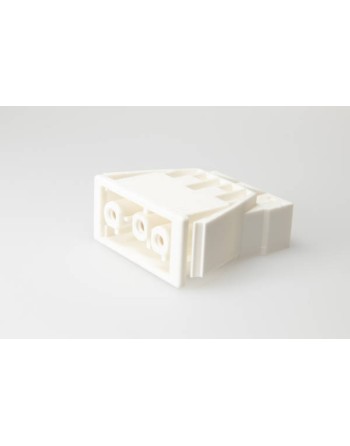

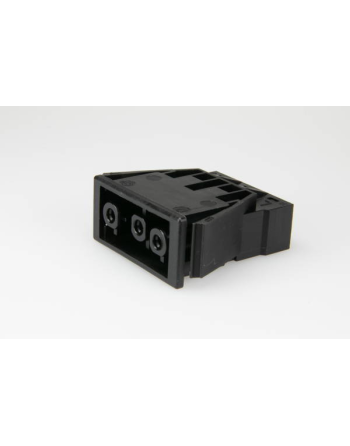

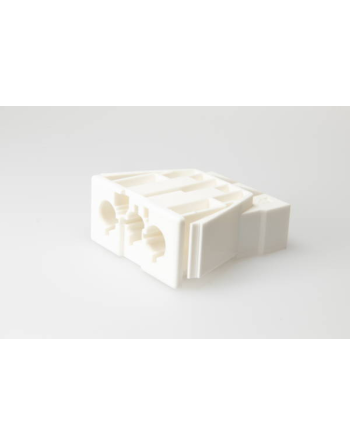

Panel Mount 3 pole

The Panel Mount 3 Pole is a versatile electrical component designed for reliable and secure connection applications in various industrial and commercial settings. This product offers a seamless integration into panels and enclosures, ensuring efficient electrical distribution and management.



Approvals



Request STP

Key Features:



Panel Mount Design: The panel mount configuration of the 3 Pole unit facilitates easy installation onto panels and enclosures, providing a stable and secure connection point.



Three Pole Configuration: With three poles, this product enables the connection of multiple circuits, enhancing flexibility and functionality in electrical setups.



Coding: 1 (Mains): The coding ensures compatibility with specific electrical systems, preventing mismatches and ensuring safe operation in mains applications.

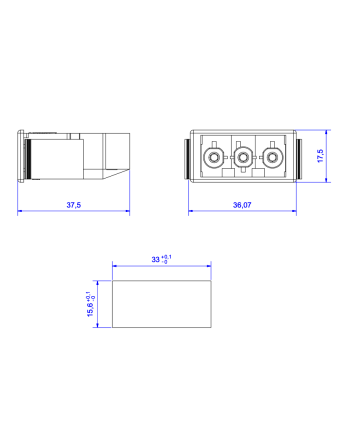

Wide Wall Thickness Compatibility: Designed to accommodate various panel thicknesses, the Panel Mount 3 Pole supports a minimum wall thickness of 0.5 mm and a maximum of 1.2 mm, ensuring versatility in installation.



Voltage Rating: 250V: With a voltage rating of 250 volts, this product is suitable for a wide range of voltage applications, providing reliable performance and safety in diverse electrical environments.



Current Rating: 20A: The 20-ampere current rating ensures robust capability to handle moderate to high electrical loads, making it suitable for powering various devices and equipment.



Cross-Section Rating: 2.5 mm²: The 2.5 square millimeter cross-section rating signifies the optimal wire size that can be accommodated by the connector, ensuring compatibility with commonly used wire gauges.



Screwless Connection Type: Featuring a screwless connection type, the Panel Mount 3 Pole offers quick and hassle-free installation, saving time and effort during setup and maintenance tasks.



Applications:



Industrial Control Panels

Electrical Distribution Systems

Machinery and Equipment Wiring

HVAC Systems

Automotive Applications

Marine and Aerospace Equipment



Overall, the Panel Mount 3 Pole stands as a reliable and efficient solution for electrical connectivity needs, offering versatility, durability, and ease of installation in various applications. Its robust construction and adherence to industry standards make it a preferred choice for professionals seeking dependable electrical components.

Data sheet

Current Rating
20 A
Voltage Rating
250 V
Insulating Material
PA 6.6
Contact Material
Brass
Core Cross-Section min
0.5 mm²
Core Cross-Section max
0.5mm2 – 4.0mm2
Impulse Voltage Rating
4 kV
max. Ambient Temperature Operation
70 °C
IP Code
IP20
IP Code when Plugged
IP40
Approbation VDE
YES
Approbation ENEC
YES
Approbation UL
YES
Approbation CSA
YES
Flammability Rating
V-2

Specific References

Download

3 p g panel

Download (321.47KB)
