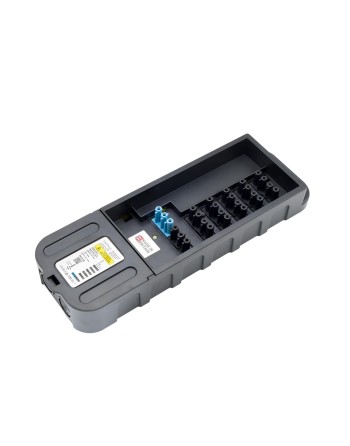

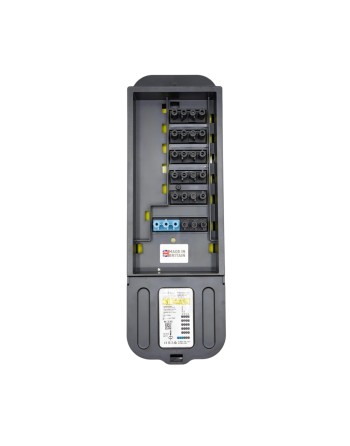

MCC5S 5 Output Switching Centre

MCC5S is a 4 pole, 5 x luminaire output single channel device with PIR presence and absence connection.



Approvals



Request STP/BIM File

Single channel MCC version

• Single channel 4 / 5 output, for use with one sensor and one switch.

• Central Mounting points suitable for mounting onto solid substrates, cable trays or trunking.

• Presence / absence version with 6 + 3-pole sensor connection.

• Switching only version, with 4-pole luminaire connection and 6-pole sensor connection.

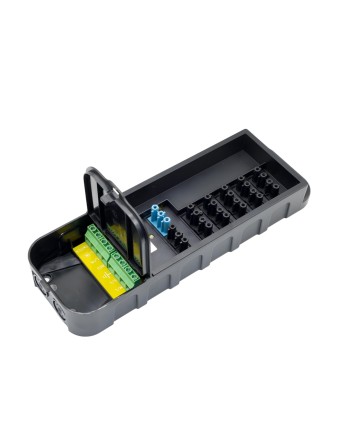

• Hinged terminal cover easily removed for quick and easy installation.

• LED indicator providing visual indication of mains present.

• Polycarbonate construction manufactured in Flame retardant UL94 VO material.

• Compliant to BS EN 60670-1:2005 Boxes & enclosures for electrical and similar fixed electrical installations.

Data sheet

Operating Voltage
230V 50HZ (UK & EU)
Product Rating
10A
Recommended Circuit Protection
10A
Maximum Load/output
6A
Maximum Total Load
10A
Supply Terminal Capacity
4.00mm²(2x1.5mm²)
Case Material
Flame retardent Polycarbonate UL94 V0
Case Finish
Lightly Sparked

Specific References

Download

DoC MCC and MDCC

Download (149.87KB)

DoC MCC Plugs

Download (156.47KB)

MCC5S Datasheet

Download (389.4KB)
