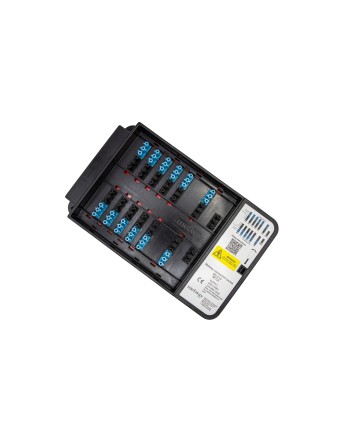

The new MCC Connection Centre lighting control module from Metway offers a wealth of new features to benefit the installer and specifier alike. It is the simple, flexible and cost effective solution for your lighting installation. The MCC connection centre unit comes in a 10 and 8 output configuration with dedicated PIR inputs.

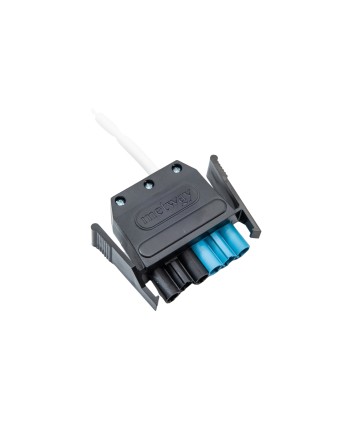

Our MCC Connection Centre and MDCC standalone addressable LCM, can be connected using the same leads. They are supplied with a 6-pole side latching plug, to a free end using 1.00mm² LS0H cable. This can be supplied in a variety of cores, and lengths as per your requirements. These are supplied with a black/blue industry standard, connector coding. Alternatively there is an option for black/grey connectors.

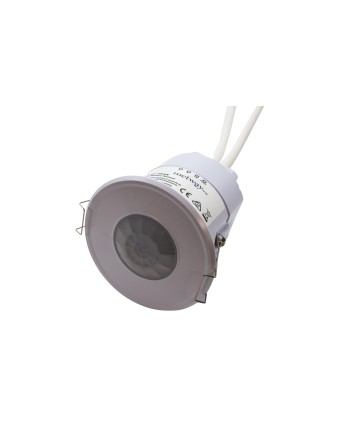

The PIRSW is a 360° switching PIR sensor

Designed with a low profile for aesthetically demanding architectural projects providing a high quality sensor for simple on / off occupancy control or providing semi-automatic (absence detection) control

An intelligent photocell is also included to prevent switching of the lights when natural daylight is available

Set-up of the sensor is carried out using a remote control handset with program memory allowing one-key commissioning where common settings are used for multiple devices

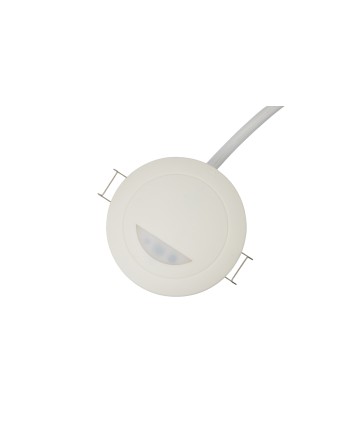

The MMSW is a 360° switching microwave sensor

Designed with a low profile for aesthetically demanding architectural projects providing a high quality sensor for simple on / off occupancy control or providing semi-automatic (absence detection) control

An intelligent photocell is also included to prevent switching of the lights when natural daylight is available

Set-up of the sensor is carried out using a remote control handset with program memory allowing one-key commissioning where common settings are used for multiple devices

The MSBS is a 360° switching high-bay sensor, that can be mounted to a batten type luminaire. There is a daylight sensor built-in, the sensor is programmed using the remote controller MPROG.

The PIRDA is a 360° dimming PIR sensor

Designed with a low profile for aesthetically demanding architectural projects providing a high quality sensor for simple on / off occupancy control or providing semi-automatic (absence detection) control

An intelligent photocell is also included to prevent switching of the lights when natural daylight is available

Set-up of the sensor is carried out using a remote control handset with program memory allowing one-key commissioning where common settings are used for multiple devices

The MWDD is a 360° dimming microwave sensor

Designed with a low profile for aesthetically demanding architectural projects providing a high quality sensor for simple on / off occupancy control or providing semi-automatic (absence detection) control

An intelligent photocell is also included to prevent switching of the lights when natural daylight is available

Set-up of the sensor is carried out using a remote control handset with program memory allowing one-key commissioning where common settings are used for multiple devices

The MDABS is a 360° DALI high-bay sensor, that can be mounted to a batten type luminaire. There is a daylight sensor built-in, the sensor is programmed using the remote controller MPROG.

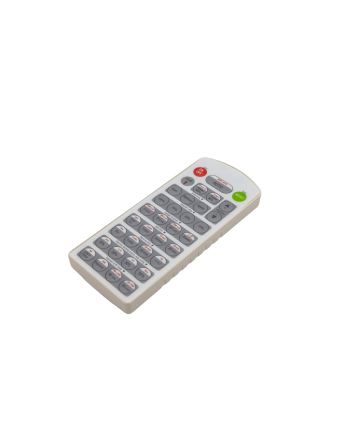

The MPROG is a compact infrared handset used for the basic programming of IR enabled Metway products.

Pointing the Handset

You must point the handset directly at the device that you want to control or program .

When programming a device it is only necessary to point the handset when ‘sending’ a new setting.

Sending settings to a device

To send the programming parameters to the device, it is simply a case of pressing the relevant button for the setting you require. If the setting is in red type, you would press the 'Shift' button (this handset will display a red light to denote this) and then press the setting you require.

The Metway MDCC12 connection centre provides a simple way to integrate presence detectors and DALI compatible luminaires using industry standard 6 pole black blue connectors

Up to 2 detectors can be connected and up to 12 luminaires dependant on the control philosophy required, manual override switches can also be incorporated

Up to 4 MDCC12 can be networked together via the DALI output.

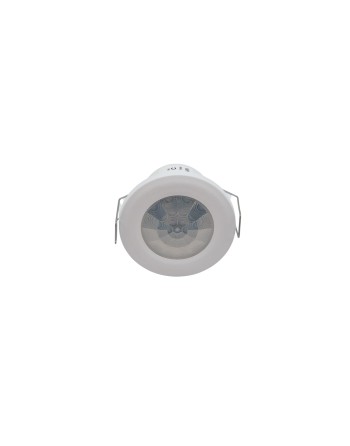

Our MDSS7S SmartSensor has been developed to provide a cost effective DALI sensor with a wide range of functions, coupled with a high level of performance.

Housed in a compact moulded enclosure, SmartSensor can operate as part of a managed DALI lighting network, or function as a versatile stand-alone sensor with extensive control capability.

As a stand-alone sensor, the unit is configured using a simple, user-friendly infra-red remote control, with coloured LEDs on the sensor providing feedback for all commands. As part of a networked system, the sensor settings are managed by a DALI area controller.

The SmartSensor Remote Control (MDSSR) provides a simple, low cost method to configure the SmartSensor range of DALI multisensors. It can also allow a user to remote control lighting managed by SmartSensor. Compact and easy to use, MDSSR is smaller than a credit card and slips easily into the pocket. Supplied in a plastic pouch with a Lithium coin battery and Programming Guide.
