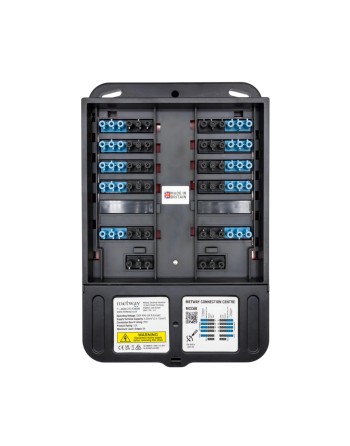

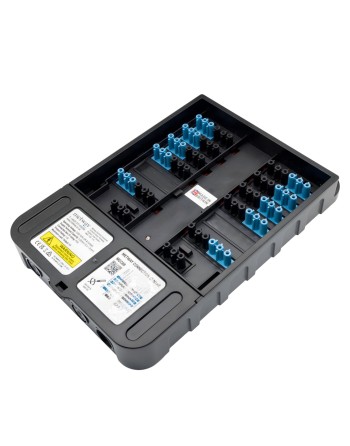

MCC8B 8 Output dual channel Dimming Centre

MCC8B is an 8 x 6-pole luminaire outputs. Dual channel with 2 x 6-pole presence connection 2 x 6 + 3-pole absence connection.



Approvals



Request STP/BIM File

Single and dual channel MCC versions

• Single channel 4 / 5 output, for use with one sensor and one switch.
• Dual channel 8 /10 output, for use with one / two sensors and one / two switches.

Central Mounting points

• Suitable for mounting onto solid substrates, cable trays or trunking.

Various solutions to meet installation demands

• Presence / absence version (as now), with 6 + 3-pole sensor connection.
• Switching only version, with 4-pole luminaire connection and 6-pole sensor connection.
• Single 7-pole version for presence and absence application.
• Option for panel mount input (single and dual channel) and output (dual channel).

DALI PSU onboard MDCC version

• 125mA PSU fitted

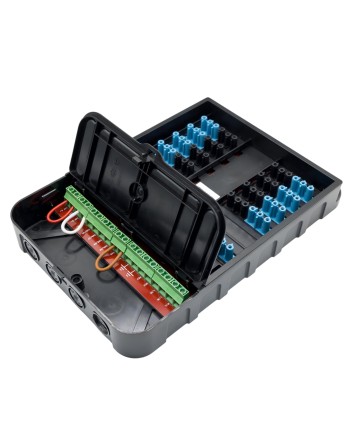

Hinged terminal cover design

• Lid can be hinged or easily removed for quick and easy installation.

LED indicator

• Provides visual indication of mains present.

Polycarbonate construction

• Tough material manufactured in Flame retardant UL94 VO material.

Compliant to BS EN 60670-1:2005

• Boxes & enclosures for electrical and similar fixed electrical installations.
• Most relevant but stringent compliance test

Data sheet

Operating Voltage
230V 50HZ (UK & EU)
Product Rating
12A
Recommended Circuit Protection
10A
Maximum Load/output
6A
Maximum Total Load
12A
Supply Terminal Capacity
4.00mm²(2x1.5mm²)
Case Material
Flame retardent Polycarbonate UL94 V0
Case Finish
Lightly Sparked

Specific References

Download

DoC MCC and MDCC

Download (149.87KB)

DoC MCC Plugs

Download (156.47KB)

MCC8B Datasheet

Download (552.08KB)
