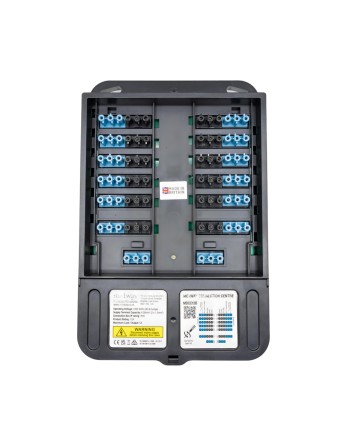

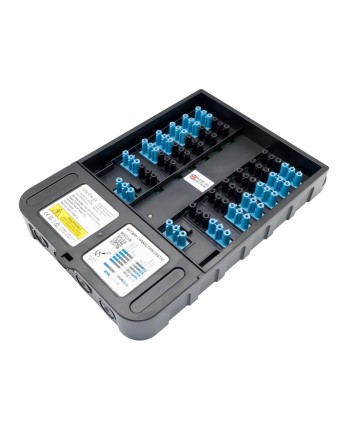

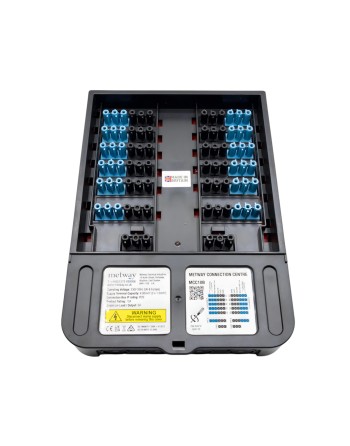

MDCC12B 12 x 6-pole Dali luminaire outputs

MDCC12B 12 x 6-pole Dali luminaire outputs. 2 x 3-pole Dali sensor connection. 125mA Dali power supply. Option for Bluetooth Dali module installation.



Approvals



Request STP/BIM File

Dual channel MDCC DALI version

 • Dual channel up to 12 luminaire outputs, for use with one / two sensors and one / two switches.

• Central Mounting points suitable for mounting onto solid substrates, cable trays or trunking.

• Presence / absence version (as now), with 6 + 3-pole sensor connection.

• MDCC version is fitted with a 125mA DALI Power Supply to enhance the communication on the DALI Line

• Two MDCC units can be connected to provide the maximum 250mA DALI requirement.

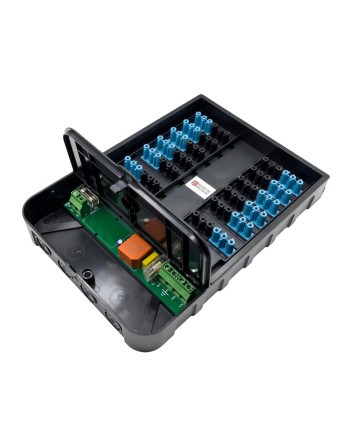

• Hinged terminal cover design for simple removal and quick and easy installation.

• LED indicator providing visual indication of mains present.

• Polycarbonate construction manufactured in Flame retardant UL94 VO material.

• Compliant to BS EN 60670-1:2005 Boxes & enclosures for electrical and similar fixed electrical installations.

A

Data sheet

Operating Voltage
230V 50HZ (UK & EU)
Product Rating
12A
Recommended Circuit Protection
10A
Maximum Load/output
6A
Maximum Total Load
12A
Supply Terminal Capacity
4.00mm²(2x1.5mm²)
Case Material
Flame retardent Polycarbonate UL94 V0
Case Finish
Lightly Sparked

Specific References

Download

DoC MCC and MDCC

Download (149.87KB)

DoC MCC Plugs

Download (156.47KB)

MDCC12B Datasheet

Download (571.79KB)
