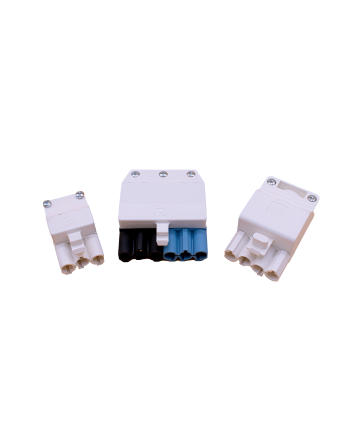

Besa Plugs
Our Besa plugs are the mating part to our Besa socket outlets.
These are supplied with a black or white industry standard connector coding on 3 or 4 poles, and black/blue on the 6 pole (there is an option for black grey connectors also).
There are alternative black and red (4 and 6 pole only) covers available.
Approvals
Request STP/BIM File
Product Codes:
166GST03ASS-BESAB - 3 pole black plug and cover.
166GST03ASS-BESAW - 3 pole white plug and cover.
166GST04ASS-BESAB - 4 pole black plug and cover.
166GST04ASS-BESAR - 4 pole red plug and cover.
166GST04ASS-BESAW - 4 pole white plug and cover.
166GST06ASS-BESAB - 6 pole black/blue plug and white cover.
166GST06ASS-BESABK - 6 pole black/blue plug and black cover.
166GST06ASS-BESAG - 6 pole black/grey plug and white cover.
166GST06ASS-BESAR - 6 pole black/blue plug and red cover.
Data sheet
- Mouldings
- Nylon 6.6 (PA6/6), Black/Blue, White or Black
- Current Rating
- To EN 61 984: 16A / 250v At 70oC To EN 60 320: 16A / 250v At 70°C
- Protection Class
- IP20 IP40 When Connected
- Inserts
- Brass, Tinned
- Contact screws
- M3 Steel, Zinc Plated, Chromed
- Moulding Screws
- C2.9 Steel, Zinc Plated, Chromed
- Screw tightening torque
- Contacts: Max: 0.3 Nm Mouldings: Max 0.4 Nm
- Temp. limits
- Max Short Term: 160°C Continuous: 100°C
- Conductor size
- 1.5mm2 - 2.5mm²
- Wire stripping length
- 7mm
- Voltage Rating
- See Approvals
