4 Pole G Type Flat Plug To Free End Leads

The 166G (Flat) range of connectors is ideal for applications where space is minimal, due to their low profile. Together with the options of panel mount connectors & moulded tee pieces, these assemblies provide simple connectivity between luminaires. The 166G(F) range of connectors is designed for main connection according to EN 61 984 (connected and disconnected under load) and used in installation systems when using the additional locking slides (VDE 0628).



Approvals



Request STP/BIM File

3 CORE LEADS (Live, Earth and Neutral)

SLPGF431530WL-001 3 metres

SLPGF431550WL-001 5 metres

SLPGF431570WL-001 7 metres

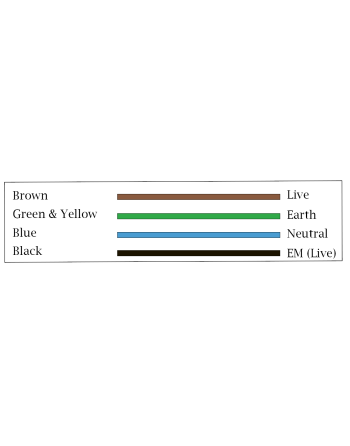

4 CORE LEADS (Live, Earth, Neutral and EM Live)

SLPGF41530WL-001 3 metres

SLPGF41550WL-001 5 metres

SLPGF41570WL-001 7 metres

We can provide leads in various lengths and conductor sizes

Leads can also be provided wired to maintained live, and with optional white covers

(Add E on end of part code)

We can also offer ultrasonic welded leads

Please contact our sales team for any requests

Data sheet

Cable
1.5mm LS0H white as standard. Black cable can be supplied as an alternative.
Prepared
Outer sheath stripped 70mm Inner cores Stripped and ferruled
Connector Rating
20 amps
Latching
Via optional locking slide
Cable Type
LS0H ECA Fire Class DCA/CCA Fire Class available on request
Compatibility
4 pole G type socket and tee piece
IP Rating
IP20
Material
UL66
Supply Terminal Capacity
2.5mm²

Specific References

Download

4 Pole Flat Plug Leads Datasheet

Download (582.08KB)

G Type Flat Leads DoC

Download (145.01KB)
