4 Pole Tee Module Starter Leads

The 4 pole 166G Classic range is Metway's standard connector for non-dimming protocols and is compatible with a range of various switching modules. Combining the Metway switching and tee modules with the following lead assemblies means any non-dimming operating system can quickly and easily be achieved.

The 166G type of connectors are designed for mains connection according to EN 61 984 (connecting and disconnecting under load) and used in installation systems when using the latching covers or locking slides (VDE 0628) Moulding are halogen free, self-extinguishing and low fuming.



Approvals



Request STP/BIM File

3 CORE LEADS (Live, Earth and Neutral)

SLSG431530WL-001 - 3 metres.

SLSG431550WL-001 - 5 metres.

SLSG431570WL-001 - 7 metres.

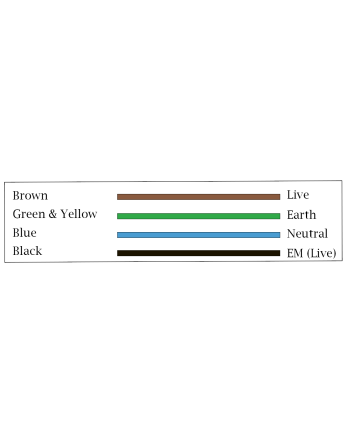

4 CORE LEADS (Live, Earth, Neutral and EM Live)

SLSG41530WL-001 - 3 metres.

SLSG41550WL-001 - 5 metres.

SLSG41570WL-001 - 7 metres.

We can provide leads in various lengths and conductor sizes.

Leads can also be provided wired to maintained live, and with optional red covers (Add E on end of part code).

We can also offer ultrasonic welded leads.

Please contact our sales team for any requests.

Data sheet

Cable
1.5mm LS0H white as standard. Black cable can be supplied as an alternative.
Prepared
Outer sheath stripped 70mm Inner cores Stripped and ferruled
Connector Rating
20 amps
Latching
Centre Latching
Cable Type
LS0H ECA Fire Class DCA/CCA Fire Class available on request
Compatibility
4 pole G type plug and remote tee piece
IP Rating
IP20
Material
UL66
Supply Terminal Capacity
2.5mm²

Specific References

Download

4 Pole Tee Start Leads Datasheet

Download (571.71KB)

Tee Module Leads DoC

Download (144.92KB)
