Scene Plates- Tiled Range

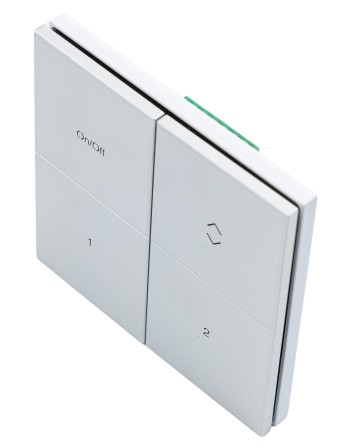

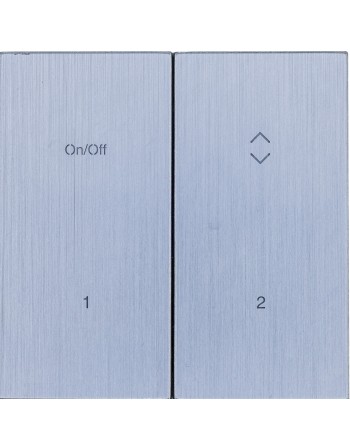

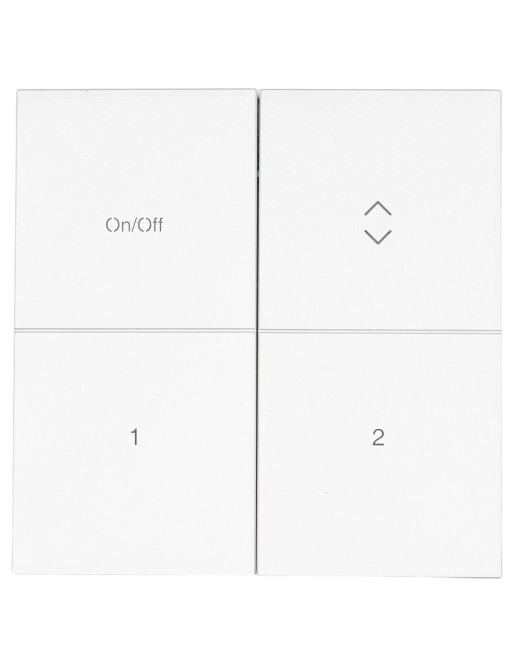

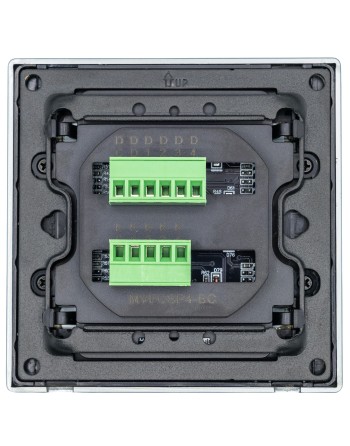

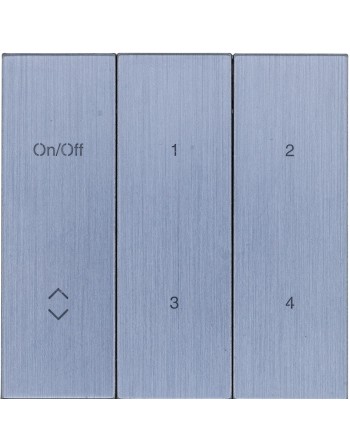

Metway Tiled range of scene plates offer 2 & 4 tiled 4 button version and 3 tiled 6 button version in a variety of colours. Scene Plates have a a Volt Free Contact enabling the installer to fit a switch module behind the plate and inside a dry lining box.



Approvals



Request STP/BIM File

Metway range of Tiled Scene plates provide simple, intuitive control of multiple lighting scenes at the touch of a button. With a volt free (dry) contact interface, they can be seamlessly integrated into lighting control systems, ensuring reliable switching without carrying mains voltage. This makes them flexible, safe, and ideal for applications where different scene settings are required, such as offices, schools, hospitality, and residential

Data sheet

IP Rating
IP20
Case Material
Aluminium
Operating Temperature
0-35°C
Voltage Rating
Volt Free (Dry) Contact 9V
Pitch
86mm x 86mm
Colour
Various

Specific References

Download

Schematic

Download (56.94KB)

Tiled Scene Plate Datasheet

Download (6.27MB)
