MMSW Switching Microwave Sensor
The MMSW is a 360° switching microwave sensor. Designed with a low profile for aesthetically demanding architectural projects providing a high quality sensor for simple on / off occupancy control or providing semi-automatic (absence detection) control.
An intelligent photocell is also included to prevent switching of the lights when natural daylight is available. Set-up of the sensor is carried out using a remote control handset with program memory allowing one-key commissioning where common settings are used for multiple devices.
Approvals
Request STP/BIM File
Store settings in the remote for easy commissioning when the programming multiple sensors.
Intelligent photocell – lights and sensors only operate when needed, natural light has priority.
Manual override.
Can be configured in presence or absence mode.
Zero cross relay operation.
An extra L and N terminal, making it possible to loop in and out of.
Hold time can be configured using the internal rotary switch, if you do not wish to purchase the programmer (MPROG).
5 year warranty.
This can be provided as a standalone part, or provided with a lead and plug (Part number will differ depending on plug/area range used).
Product Codes:
MCCMW03BSWP Presence sensor fitted with 3 metre lead. Used with MCC LCM.
MCCMW03BSWPA Absence sensor fitted with 3 metre lead. Used with MCC LCM.
MMSW-BESA Presence sensor fitted with connecting lead for Besa socket.
MMSWRTM2 Presence sensor fitted with remote tee for corridors.
MMSW Standalone sensor.
Data sheet
- IP Rating
- IP20
- Voltage
- 220~240VAC 50/60Hz
- Operating Temperature
- -20 to +50°C
- Stand By Power
- Less than 1W
- LOAD RATINGS:
- .
- Capacitive
- 400VA
- Resistive
- 1200W
- Warming-Up
- 20s
- Sensor Principle
- High Frequency Microwave
- Operation Frequency
- 5.8GHz +/- 75MHz
- Transmission Power
- Less than 0.2mW

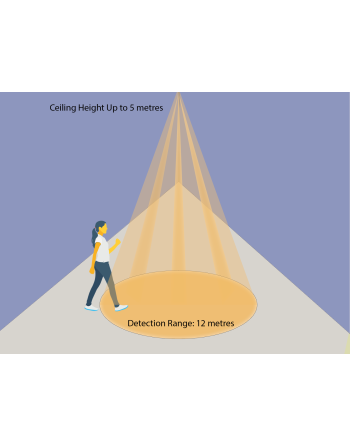

- Detection Range
- Max. (Ø x H) 12m x 6m
- Detection Angle
- 360°
- EMC Standard
- EN55015, EN61000
- Safety Standard (LVD)
- EN60669, AS/NZS60669
- Radio Equipment (RED)
- EN300440, EN301489, EN62479
- Certification
- Semko, CB, CE, EMC, RED, RCM
