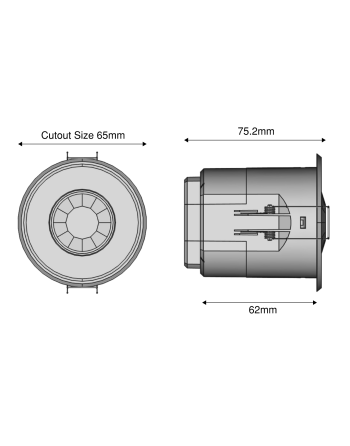

PIRSW Switching PIR Sensor

The PIRSW is a 360° switching PIR sensor

Designed with a low profile for aesthetically demanding architectural projects providing a high quality sensor for simple on / off occupancy control or providing semi-automatic (absence detection) control

An intelligent photocell is also included to prevent switching of the lights when natural daylight is available

Set-up of the sensor is carried out using a remote control handset with program memory allowing one-key commissioning where common settings are used for multiple devices



Approvals



Request STP

  • Store settings in the remote for easy commissioning when programming multiple sensors
  • Intelligent photocell – lights and sensors only operate when needed, natural light has priority
  • Manual override
  • Can be configured in presence or absence mode
  • Zero cross relay operation
  • 5 year warranty
  • This can be provided as a standalone part, or provided with a lead and plug (Part number will differ depending on plug/area range used)

       Product Codes

       MCCPIR03BSWP             Presence sensor fitted with 3 metre lead. Used with MCC LCM

       MCCPIR03BSWPA           Absence sensor fitted with 3 metre lead. Used with MCC LCM

       BESA4PIRSWW1             Presence sensor fitted with connecting lead for Besa socket

       CORSWRTM1                  Presence sensor fitted with remote tee for corridors

       PIRSW                           Standalone sensor

Data sheet

IP Rating
IP20
Voltage
220~240VAC 50/60Hz
Operating Temperature
-20 to +50°C
Stand By Power
Less than 0.5W
LOAD RATINGS:
.
Capacitive
400VA
Resistive
800W
Warming-Up
20s
Sensor Principle
PIR Detection

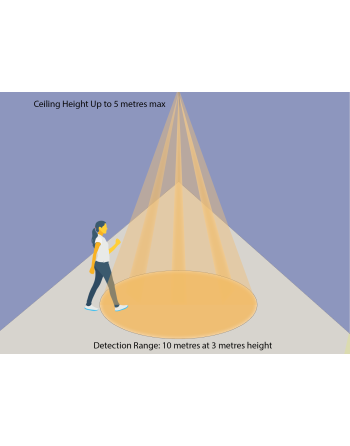

Detection Range
Max. (Ø x H) 10m x 3m
Detection Angle
360°
EMC Standard
EN55015, EN61000, EN61547
Safety Standard (LVD)
EN60669-1, EN60669-2-1, AS/NES60669-1/2-1
Certification
CB, CE, EMC, LVD, RCM, ROHS compliance
Mounting Height
5 metres maximum

Specific References

Download

PIRSW Datasheet

Download (1.94MB)

PIR Sensors DoC

Download (146.18KB)
