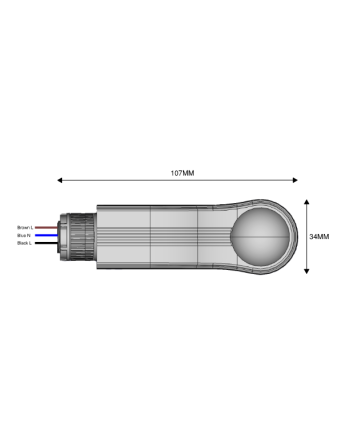

MSBS Switching Batten Sensor
The MSBS is a 360° switching high-bay sensor, that can be mounted to a batten type luminaire. There is a daylight sensor built-in, the sensor is programmed using the remote controller MPROG.
Approvals
Request STP/BIM File
Energy Saving.
IP65 luminaire mounted.
Built in daylight sensor.
Remote control programming.
Suitable for low temperature environments.
5 year warranty.

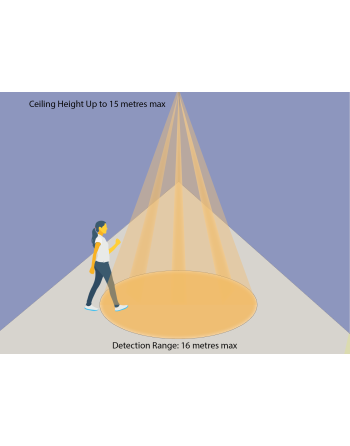

Suitable for high bay applications (up to 15 metres).
Data sheet
- IP Rating
- IP65
- Voltage
- 220~240VAC 50/60Hz
- Operating Temperature
- -35° to +50°C
- Stand By Power
- Less than 0.5W
- Capacitive
- 400VA
- Resistive
- 800W
- Warming-Up
- 30s
- Sensor Principle
- PIR Detection
- Detection Range
- 16 metres maximum
- Detection Angle
- 360°
- EMC Standard
- EN55015, EN61000-3-21-3-3, EN61547
- Safety Standard (LVD)
- EN61347-1, EN61347-2-11
- Certification
- ENEC, CE, EMC, LVD, RCM
- Mounting Height
- 15 metres maximum
Specific References
Array
The MSBS is a 360° switching high-bay sensor, that can be mounted to a batten type luminaire. There is a daylight sensor built-in, the sensor is programmed using the remote controller MPROG.
