Klik LCM Leads
Metway can provide leads for other manufacturers lcms, such as Hager Klik.
The LCM lead is supplied with a 6-pole latching plug, to a free end on 1.00mm² LS0H cable.
This can be supplied in a variety of cores, and length as per your requirements.
Approvals
Request STP/BIM File

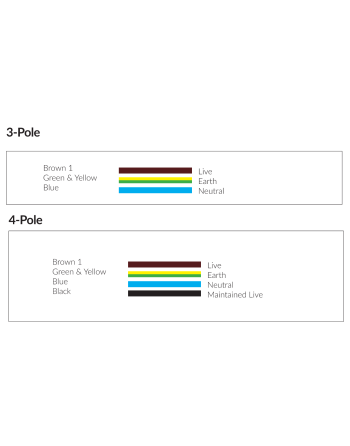

3 CORE LEADS (Live, Earth and Neutral)
BL333P22 - 3 metres.
BL335P22 - 5 metres.
BL337P22 - 7 metres.
4 CORE LEADS (Live, Earth, Neutral and EM Live)
BL443P64 - 3 metres.
BL445P64 - 5 metres.
BL447P64 - 7 metres.
We can provide leads in various lengths and conductor sizes.
We can also offer ultrasonic welded leads.
Please contact our sales team for any requests.
Data sheet
- Cable
- 1.00mm LSOH white
- Prepared
- Outer sheath stripped 70mm inner cores stripped and ferruled
- Connector Rating
- 16 amps
- Latching
- Yes
- Cable Type
- LS0H ECA Fire Class DCA/CCA Fire Class available on request
- Compatibility
- Hager Kilk KLDS
- IP Rating
- IP20
- Material
- UL66
- Supply Terminal Capacity
- 2.5mm²
