Connect Products

Metway supplies a comprehensive range of top quality electromechanical connector solutions to electrical manufacturers. With literally thousands of potential solutions, including bespoke designs, to choose from, Metway probably has an answer to your connection problem.

Connect Products

There are 15 products.

Showing 1-12 of 15 item(s)

Active filters

  • Categories: 164 Compact Range

164 2 pole flat

Plug & Socket, 2 Pole

coding: 1 (mains)cable diameter min.: 5.0 mmcable diameter max.: 8.8 mm

voltage rating: 240/400 Vcurrent rating: 16 Across-section rating: 2.5 mm²connection type: screw

164 3 pole flat

Plug & Socket, 3 Pole

coding: 1 (mains)cable diameter min.: 5.4 mmcable diameter max.: 10.0 mm

voltage rating: 240/400 Vcurrent rating: 16 Across-section rating: 2.5 mm²connection type: screw

164 4 pole flat

Plug & Socket, 4 Pole

coding: 1 (mains)cable diameter min.: 6.5 mmcable diameter max.: 11.8 mm

voltage rating: 240/400 Vcurrent rating: 16 Across-section rating: 2.5 mm²connection type: screw

164 5 pole flat

Plug & Socket, 5 Pole

coding: 1 (mains)cable diameter min.: 6.5 mmcable diameter max.: 11.8 mm

voltage rating: 240/400 Vcurrent rating: 16 Across-section rating: 2.5 mm²connection type: screw

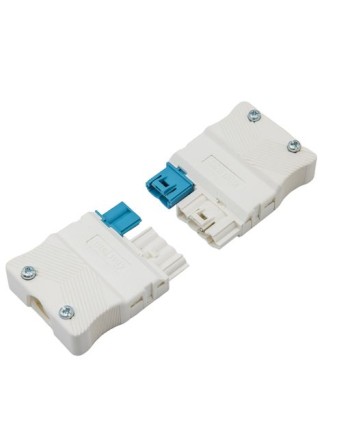

164 6 pole flat

Plug & Socket, 6 Pole

coding: 1 (mains)cable diameter min.: 6.5 mmcable diameter max.: 11.8 mm

voltage rating: 240/400 Vcurrent rating: 16 Across-section rating: 2.5 mm²connection type: screw

164 2 pole panel mounts

Panel mount, 2 pole

coding: 1 (mains)voltage rating: 250 Vcurrent rating: 16 A

cross-section rating: 2.5 mm²wall thickness min.: 0.5 mmwall thickness max.: 1.2 mm



164 3 pole panel mounts

Panel mount, 3 pole

coding: 1 (mains)voltage rating: 250 Vcurrent rating: 16 A

cross-section rating: 2.5 mm²wall thickness min.: 0.5 mmwall thickness max.: 1.2 mm



164 4 pole panel mounts

Panel Mount, 4 pole

coding: 1 (mains)voltage rating: 250 Vcurrent rating: 16 A

cross-section rating: 2.5 mm²wall thickness min.: 0.5 mmwall thickness max.: 1.2 mm



164 5 pole panel mounts

Panel mount, 5 pole

coding: 1 (mains)voltage rating: 250 Vcurrent rating: 16 A

cross-section rating: 2.5 mm²wall thickness min.: 0.5 mmwall thickness max.: 1.2 mm

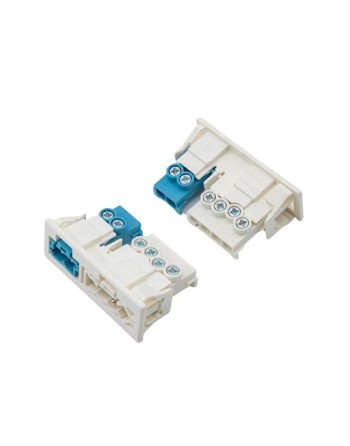

164 6 pole panel mounts

Panel mount, 6 pole

coding: 1 (mains)voltage rating: 250 Vcurrent rating: 16 A

cross-section rating: 2.5 mm²wall thickness min.: 0.5 mmwall thickness max.: 1.2 mm
